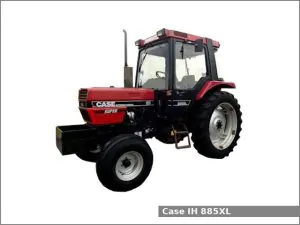

CaseIH 885XL

CaseIH 885XLThe CaseIH 885XL is a 4WD utility tractor from the 85 XL series. This tractor was manufactured by CaseIH in Doncaster, England from 1985 to 1990. The CaseIH 885XL is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and a two-speed power shift transmission with 16 forward and 8 reverse gears.

The Case International 885XL utility tractor used the CaseIH D268 engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke. This engine produced 84.2 PS (61.9 kW; 83.0 HP) at 2,400 rpm of output power.

The CaseIH 885 XL is equipped with power steering, wet disc brakes, Secura cab (standard) and 112.0 liters (29.6 US gal.; 24.6 Imp. gal) fuel tank.

CaseIH 885XL Specifications

General Specifications
Model CaseIH 885 XL
Length 3,740 mm (147.2 in)
Width
Height (cab) 2,640 mm (103.9 in)
Wheel base 2,160 mm (85 in)
Weight 3,560 kg (7,848 lbs)
Fuel tank capacity 112.0 liters (29.6 US gal.; 24.6 Imp. gal)
Battery 12V
Cabin type Secura cab (standard)
Engine
Engine model CaseIH D268
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke 100.0 mm X 140.0 mm (3.94 in X 5.51 in)
Horsepower 84.2 PS (61.9 kW; 83.0 HP) at 2,400 rpm
Torque 296.0 N·m (30.2 kg·m, 218.2 ft·lb) at 1,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model Torque Amplifier
Transmission type Two-speed power shift
Gears 16 forward and 8 reverse
Tires
Front tires Ag: 12.4-24
Rear tires Ag: 16.9-34
Three-Point Hitch
Category II
Control type
Lift capacity 2,380 kg (5,250 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type
Pump flow 12.4 gpm (46.9 lpm)
