CaseIH JX95 Maxxima

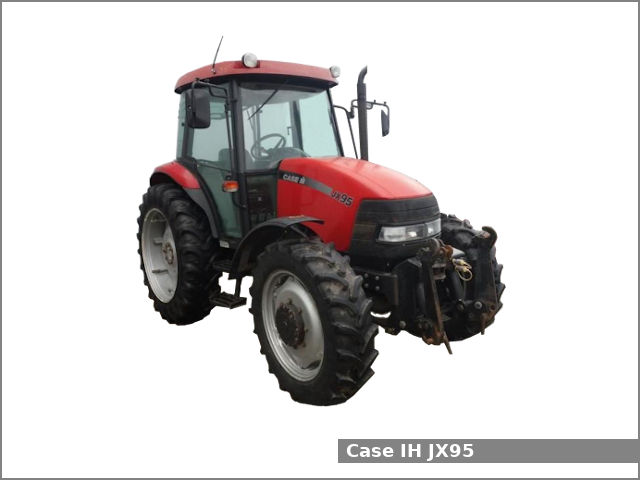

CaseIH JX95 MaxximaThe CaseIH JX95 Maxxima is a 2WD or 4WD utility tractor from the JX series. This tractor was manufactured by Turk Tractor for distributor Case IH in Turkey from 2002 to 2009. The CaseIH JX95 is equipped with a 3.9 L (238.5 cu·in) four-cylinder diesel engine and a mechanical shuttle transmission with 12 forward and 12 reverse gears (20 forward and 12 reverse gears with creeper).

The CaseIH JX95 Maxxima utility tractor used the Iveco engine. It is a 3.9 L, 3,908 cm2, (238.5 cu·in) four-cylinder turbocharged diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 94.4 PS (69.4 kW; 93.0 HP) at 2,500 rpm of output power.

The CaseIH JX95 Maxxima is equipped with hydrostatic power steering, independent wet disc brakes, two-post ROPS or Cab (optional) and 92.0 liters (24.3 US gal.; 20.2 Imp. gal) fuel tank.

CaseIH JX95 Maxxima Specifications

General Specifications
Model CaseIH JX95 Maxxima
Length 2WD: 4,110 mm (161.8 in)
4WD: 4,050 mm (159.4 in)
Wheel base 2WD: 2,380 mm (93.7 in)
4WD: 2,330 mm (91.7 in)
Weight (operating) 2WD Cab: 3,079 kg (6,788 lbs)
4WD Cab: 3,454 kg (7,615 lbs)
Fuel tank capacity 92.0 liters (24.3 US gal.; 20.2 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or Cab (optional)
Engine model Iveco
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,908 cm2, (238.5 cu·in)
Bore and stroke 104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio 18.0:1
Horsepower 94.4 PS (69.4 kW; 93.0 HP) at 2,500 rpm
Torque 337.1 N·m (34.4 kg·m, 248.4 ft·lb) at 1,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Independent wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Mechanical shuttle
Gears 12 forward and 12 reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: 29.8 kmh (18.5 mph)
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category II
Control type Mechanical lower-link draft sensing
Lift capacity (at ends) 2280 kg (5027 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/540E or 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Valves 3
Pump flow 10.6 gpm (40.1 lpm)
13.6 gpm (51.5 lpm)
Steering flow 8.7 gpm (32.9 lpm)
Total flow 21.7 gpm (82.1 lpm)
