CaseIH Farmall 75C (2008-2013)

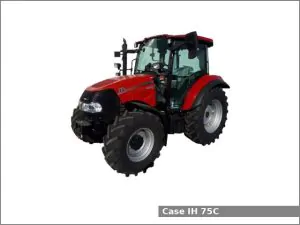

CaseIH Farmall 75CThe CaseIH Farmall 75C is a 2WD or 4WD utility tractor from the Farmall C series. This tractor was manufactured by CaseIH in Jesi, Italy from 2008 to 2022. This first generation was manufactured from 2008 to 2013. The CaseIH Farmall 75C is equipped with a 3.2 L (195.0 cu·in) four-cylinder diesel engine and one of two transmissions: a mechanical shuttle transmission with 16 forward and 16 reverse gears or a power shuttle transmission with 16 forward and 16 reverse gears.

The Case IH 75C utility tractor used the Fiat Powertrain Technologies (FPT) engine. It is a 3.2 L, 3,195 cm2, (195.0 cu·in) four-cylinder turbocharged intercooled diesel engine with 99.0 mm (3.9 in) of the cylinder bore and 104.0 mm (4.09 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 77.1 PS (56.7 kW; 76.0 HP) at 2,300 rpm of output power.

The Case 75C is equipped with hydrostatic power steering, hydraulic wet disc brakes, Straddle deck platform with ROPS or cab (optional) and 74.9 liters (19.8 US gal.; 16.5 Imp. gal) fuel tank.

Following attachments are available for the CaseIH Farmall 75C utility tractor:

  • CaseIH L720 loader
  • CaseIH L730 loader

CaseIH Farmall 75C Specifications

General Specifications
Model CaseIH Farmall 75C
Length
Width
Height ROPS: 1,970 mm (77.6 in)
Cab: 2,320 mm (91.3 in)
Wheel base 2WD: 2,170 mm (85.4 in)
4WD: 2,090 mm (82.3 in)
Weight (shipping) 2WD ROPS: 2,620 kg (5,775 lbs)
4WD ROPS: 2,870 kg (6,330 lbs)
2WD Cab: 2,820 kg (6,220 lbs)
4WD Cab: 3,070 kg (6,770 lbs)
Fuel tank capacity 74.9 liters (19.8 US gal.; 16.5 Imp. gal)
Battery 12V, CCA 730A
Cabin type Straddle deck platform with ROPS or cab (optional)
Engine
Engine model Fiat Powertrain Technologies (FPT)
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.2 L, 3,195 cm2, (195.0 cu·in)
Bore and stroke 99.0 mm X 104.0 mm (3.9 in X 4.09 in)
Compression ratio 17.5:1
Horsepower 77.1 PS (56.7 kW; 76.0 HP) at 2,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model
Transmission type Mechanical shuttle
Gears 16 forward and 16 reverse
Transmission model
Transmission type Power shuttle
Gears 16 forward and 16 reverse
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/24 in) 1,795 kg (3,960 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 or 540/1000 (optional)
Hydraulic system
Hydraulic type Open center
Valves Rear: 1 to 2 Mid: 0 to 2
Pump flow 12.8 gpm (48.5 lpm)
Steering flow 7.4 gpm (28 lpm)
Total flow 20.2 gpm (76.5 lpm)
