CaseIH Farmall 75C (2014-2022)

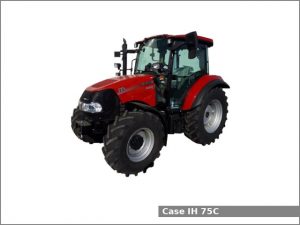

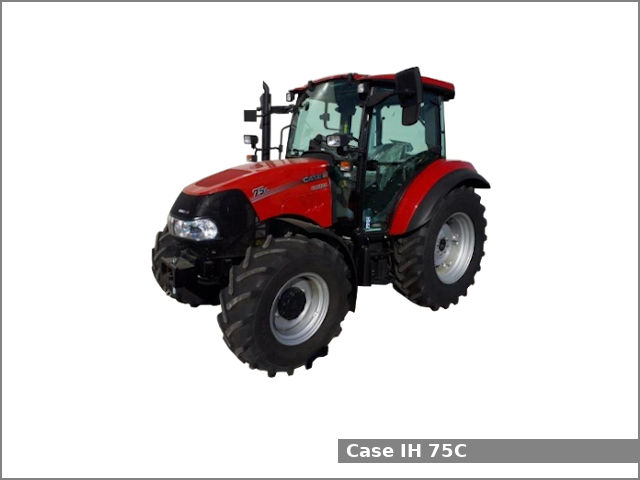

CaseIH Farmall 75CThe CaseIH Farmall 75C is a 2WD or 4WD utility tractor from the Farmall C series. This tractor was manufactured by CaseIH from 2008 to 2022. This second generation was manufactured from 2014 to 2022. The CaseIH 75C is equipped with a 3.4 L (207.0 cu·in) four-cylinder diesel engine and one of three transmissions: a mechanical shuttle transmission with 8 forward and 8 reverse gears, a power shuttle transmission with 8 forward and 8 reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.

The Case 75C utility tractor used the Fiat Powertrain Technologies (FPT) engine. It is a 3.4 L, 3,392 cm2, (207.0 cu·in) four-cylinder wastegate turbocharged diesel engine with 99.0 mm (3.9 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 75.1 PS (55.2 kW; 74.0 HP) at 2,300 rpm of output power.

The CaseIH Farmall 75C is equipped with power steering, wet disc brakes, two-post ROPS or cab (optional) and 90.1 liters (23.8 US gal.; 19.8 Imp. gal) fuel tank.

Following attachments are available for the CaseIH Farmall 75C utility tractor:

  • Case IH L565 loader
  • Case IH L575 loader

CaseIH Farmall 75C Specifications

General Specifications
ModelCaseIH Farmall 75C
Length3,780 mm (148.8 in)
Width2,100 mm (82.7 in)
Height ROPS: 2,560 mm (100.8 in)
Cab: 2,480 mm (97.6 in)
Wheel base 2WD: 2,170 mm (85.4 in)
4WD: 2,130 mm (83.9 in)
Weight 2WD ROPS: 2,280 kg (5,030 lbs)
4WD ROPS: 2,700 kg (5,950 lbs)
2WD Cab: 2,830 kg (6,240 lbs)
4WD Cab: 3,330 kg (7,340 lbs)
Fuel tank capacity90.1 liters (23.8 US gal.; 19.8 Imp. gal)
Cabin typeTwo-post ROPS or Cab (optional)
Engine modelFiat Powertrain Technologies (FPT)
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement3.4 L, 3,392 cm2, (207.0 cu·in)
Bore and stroke99.0 mm X 110.0 mm (3.9 in X 4.33 in)
Horsepower75.1 PS (55.2 kW; 74.0 HP) at 2,300 rpm
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesWet disc
Final driveInboard planetary
Transmission model
Transmission typeMechanical shuttle
Gears8 forward and 8 reverse
Transmission model
Transmission typePower shuttle
Gears8 forward and 8 reverse
Transmission model
Transmission typePower shuttle
Gears12 forward and 12 reverse
Front tires Ag: 7.50×16 (2WD), 11.2R24 (4WD)
Rear tires Ag: 16.9R30 (2WD), 19.6R30 (4WD)
Three-Point Hitch
Control typeTop link draft sensing
Lift capacity (at ends)2,190 kg (4,830 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540, 540/540E rpm
Hydraulic system
Hydraulic typeOpen center
Valves1 or 2
Pump flow12.5 gpm (47.3 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
