Cub Cadet 7254

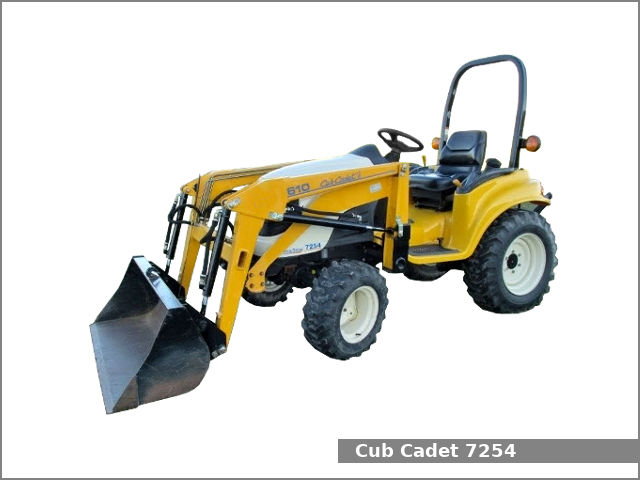

Cub Cadet 7254The Cub Cadet 7254 is a 4WD compact utility tractor from the 7000 series. This tractor was manufactured by Cub Cadet during 2003 . The Cub Cadet 7254 is equipped with a 0.7 L (45.5 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Cub Cadet 7254 compact utility tractor used the Kawasaki FD750 engine. It is a 0.7 L, 745 cm2, (45.5 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power.

The Cub Cadet 7254 is equipped with hydrostatic power steering, dry shoe brakes, two-post foldable ROPS, and 22.7 liters (6 US gal.; 5 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 7254 compact utility tractor:

  • Mid-mount Cub Cadet 590-613-100: 1,370 mm (54 in) mower deck
  • Mid-mount Cub Cadet 590-614-100: 1,520 mm (60 in) mower deck
  • Front-mount Cub Cadet 590-615-100: 1,520 mm (60 in) blade
  • Front-mount Cub Cadet 590-619-100: 1,370 mm (54 in) snowblower
  • Cub Cadet 610 loader
  • Cub Cadet 612 backhoe

Cub Cadet 7254 Specifications

General Specifications
Model Cub Cadet 7254
Length 2,310 mm (90.9 in)
Width 1,210 mm (47.6 in)
Height (ROPS) 2,000 mm (7.9 in)
Wheel base 1,470 mm (57.9 in)
Ground clearance 250 mm (9.8 in)
Weight 753 kg (1,660 lbs)
Fuel tank capacity 22.7 liters (6 US gal.; 5 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post foldable ROPS
Engine
Engine model Kawasaki FD750
Engine type Four-stroke, liquid-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 745 cm2, (45.5 cu·in)
Bore and stroke 78.0 mm X 78.0 mm (3.07 in X 3.07 in)
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 2.0 L (2.1 US. qt, 1.8 Imp. qt.)
Coolant capacity: 3.3 L (3.5 US. qt, 2.9 Imp. qt.)
Spark plug NGK BPR2ES
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Dry shoe
Differential lock Mechanical rear
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 17.7 kmh (11 mph) Reverse: 8.8 (5.5 mph)
Transmission oil capacity 22.7 L (6 US. gal, 5 Imp. gal.)
Tires
Front tires Ag: 6×12
Lawn/turf: 23×9.5-12
Rear tires Ag: 9.5×16
Lawn/turf: 31×12-15
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 520 kg (1,145 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed 2,000 rpm
Rear PTO type Independent with electric clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center gear pump
Hydraulic capacity 22.7 L (6 US. gal, 5 Imp. gal.)
Pressure 1500 psi (103.4 bar)
Pump flow 5.0 gpm (18.9 lpm)
Steering flow 3.0 gpm (11.4 lpm)
Total flow 8.0 gpm (30.3 lpm)
