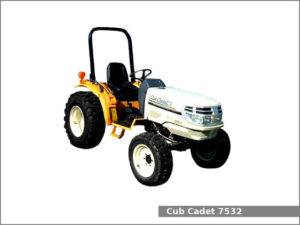

The Cub Cadet 7532 is a 4WD compact utility tractor from the 7000 series. This tractor was manufactured by Mitsubishi for Cub Cadet from 2004 to 2010. The Cub Cadet 7532 is equipped with a 1.5 L (91.3 cu·in) three-cylinder diesel engine and one of two transmissions: a hydrostatic transmission with infinite (3-range) forward and reverse gears or a constant mesh transmission with 8 forward and 8 reverse gears.
The Cub Cadet 7532 compact utility tractor used the Mitsubishi K3M engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder turbocharged diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 32.5 PS (23.9 kW; 32.0 HP) at 2,500 rpm of output power.
The Cub Cadet 7532 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.
Cub Cadet 7532 Specifications
| General Specifications | |
| Model | Cub Cadet 7532 |
| Length | 3,070 mm (120.9 in) |
| Width |
Gear: 1,270 mm (50.0 in) HST: 1,330 mm (52.3 in) |
| Height |
Gear: 2,105 mm (82.9 in) HST: 2,130 mm (83.9 in) |
| Wheel base | 1,700 mm (66.9 in) |
| Ground clearance |
Gear: 340 mm (13.3 in) HST: 365 mm (14.3 in) |
| Weight |
Gear: 1,050 kg (2,315 lbs) HST: 1,110 kg (2,445 lbs) |
| Fuel tank capacity | 27.0 liters (7.1 US gal.; 5.9 Imp. gal) |
| Battery | 12V, CCA 500A |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Mitsubishi K3M |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.5 L, 1,496 cm2, (91.3 cu·in) |
| Bore and stroke | 84.0 mm X 90.0 mm (3.31 in X 3.54 in) |
| Compression ratio | 18.0:1 |
| Horsepower | 32.5 PS (23.9 kW; 32.0 HP) at 2,500 rpm |
| Starter | Electric |
| Oil capacity: | 4.2 L (4.4 US. qt, 3.7 Imp. qt.) |
| Coolant capacity: | 5.8 L (6.1 US. qt, 5.1 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Wet disc |
| Final drive | Spur |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 20.6 kmh (12.8 mph) |
| Transmission oil capacity | 32.0 L (8.5 US. gal, 7 Imp. gal.) |
| Transmission model | – |
| Transmission type | Constant mesh |
| Gears | 8 forward and 8 reverse |
| Speed | Forward: 18.1 kmh (11.2 mph) |
| Transmission oil capacity | 29.0 L (7.7 US. gal, 6.4 Imp. gal.) |
| Tires | |
| Front tires | Ag: 7-16 |
| Rear tires | Ag: 11.2-24 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | Position control |
| Lift capacity (at ends) | 1,200 kg (2,645 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Independent (gaer) or Combined (HST) |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Independent (gaer) or Combined (HST) |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Gear pump |
| Pressure | 2205 psi (152 bar) |
| Pump flow | 7.2 gpm (27.3 lpm) |
| Steering flow | 2.5 gpm (9.5 lpm) |
| Total flow | 9.7 gpm (36.7 lpm) |
