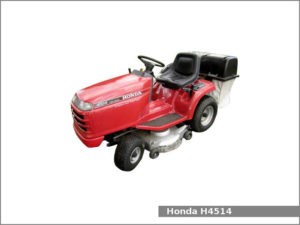

Honda H4514The Honda H4514 is a lawn tractor with small 0.36 l (359 cc) two-cylinder water-cooled 4-stroke gasoline motor Honda GX360. The Honda H4514H is equipped with hydrostatic transmission and 965 mm (38 in.) or 1190 mm (42 in.) mower deck. The mower deck is adjustable in seven increments for cutting heights between 25 mm (1 in.) and 100 mm (4 in). The Honda H4514 lawn tractor was produced from 1990 up to 1998.

The Honda GX360 K1 develops 13.2 PS (13 HP, 9.7 kW) at 3600 rpm and 25.7 Nm (2.54 kg·m, 19 ft·lb) of torque at 3000 rpm. The GX360 engine has an electric starter and transistorized ignition. It is a liquid-cooling motor with a 58 mm (2.3 in) bore and a 68 mm (2.7 in) stroke, and 8.5:1 compression ratio.

The hydrostatic transmission. This transmissiom has three approximate ground speeds: Reverse to 3.4 km/h (2.1 mph), Mowing to 5.1 km/h (3.2 mph) and Transport to 7.6 km/h (4.7 mph)

Honda H4514 specifications

General Specifications
Model Honda H4514H
Length 1,815 mm (71.5 in)
Width 38 inch deck type: 1,270 mm (50.0 in)
42 inch deck type: 1,460 mm (57.5 in)
Height 1,050 mm (41.3 in)
Wheel base 1190 mm (46.9 in.)
Dry weight 38 inch deck type: 258.0 kg (569.0 lbs)
42 inch deck type: 270.0 kg (595.0 lbs)
Front tires size 15×6.0-6
Front tires pressure 98 kPa (1.0 kg/cm2, 14 psi)
Rear tires size 20.5×8.5-10
Rear tires pressure 79 kPa (0.8 kg/cm2, 11.4 psi)
Fuel tank capacity 9.0 l (2.38 US gal., 1.98 Imp gal.)
Battery 12V-30AH
Engine
Engine model Honda GX360 K1
Displacement 359 cm3 (21.9 cu-in)
Bore x stroke 58.0 X 68.0 mm (2.3 x 2.7 in)
Max. horsepower 13.2 PS (13 HP, 9.7 kW) at 3600 rpm
Max. torque 25.7 Nm (2.54 kg·m, 19 ft·lb) at 3000 rpm
Carburetor Horizontal type, butterfly valve
Cooling system Liquid-cooling
Ignition system Transistorized magneto ignition
Lubricating system Forced oil by trochoid pump
Starting system Electric starter
Stoping system Ignition primary circuit ground
Fuel used Unleaded gasoline (octane number 86 or higher)
Spark plug NGK: BPR4HS, DENSO: W14FPR-UL
Oil type Honda 4-stroke or an equivalent (SE or SF)
Recommended oil SAE 10W-40
Oil capacity (without filter changed) 1.1 L (1.16 US qt)
Oil capacity (with filter changed) 1.4 L (1.48 US qt)
Hydrostatic type transmission
Type Oil pressure-type variable-speed transmission
Groung speeds Reverse: 3.4 km/h (2.1 mph)
Mowing: 5.z km/h (3.2 mph)
Transport: 7.6 km/h (4.7 mph)
Mower Deck
Deck size 965 mm (38 in.) or 1,060 mm (42 in.)
Height range 25-100 mm (1-4 in.)
