Honda HF1211

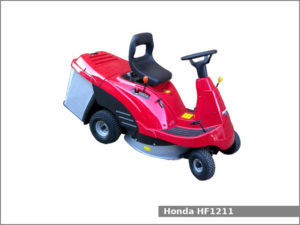

Honda HF1211The Honda HF1211 is a 2WD riding mower manufactured by Honda. The Honda HF1211 is equipped with a 0.3 L (20.6 cu·in) single-cylinder gasoline engine and one of two transmissions: a belt-driven gear transmission with 5 forward and 1 reverse gears or a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Honda HF1211 riding mower used the Honda GXV340 engine. It is a 0.3 L, 337 cm2, (20.6 cu·in) single-cylinder natural aspirated gasoline engine with 82.0 mm (3.23 in) of the cylinder bore and 64.0 mm (2.52 in) of the piston stroke. The compression ratio rating is 7.7:1. This engine produced 11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm of output power.

The Honda HF1211 is equipped with manual steering, open operator station, and 3.8 liters (1 US gal.; 0.8 Imp. gal) fuel tank.

Honda HF1211 Specifications

General Specifications
Model Honda HF1211
Length 1,530 mm (60.2 in)
Width
Height (steering wheel) 1,090 mm (42.9 in)
Wheel base 1,130 mm (44.5 in)
Weight Gear: 167 kg (368 lbs)
Hydro: 176 kg (388 lbs)
Fuel tank capacity 3.8 liters (1 US gal.; 0.8 Imp. gal)
Battery 12V, 20Ah
Cabin type Open operator station
Engine
Engine model Honda GXV340
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 337 cm2, (20.6 cu·in)
Bore and stroke 82.0 mm X 64.0 mm (3.23 in X 2.52 in)
Compression ratio 7.7:1
Horsepower 11.2 PS (8.2 kW; 11 HP) at 3,600 rpm
Starter Electric
Oil type NGK BPR5ES
Oil capacity: 1.1 L (1.2 US. qt, 1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model
Transmission type Belt-driven gear (Honda HF1211S)
Gears 5 forward and 1 reverse
Speed Forward: 7.0 kmh (4.4 mph) Reverse: 2.0 (1.2 mph)
Transmission model
Transmission type Belt-driven hydrostatic (Honda HF1211H)
Gears Infinite forward and reverse
Speed Forward: 8.0 kmh (5 mph) Reverse: 3.7 (2.3 mph)
Tires
Front tires Lawn/turf: 11×4-4
Rear tires Lawn/turf: 15×6-6
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO speed
