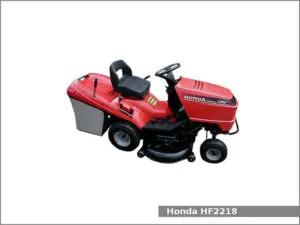

The Honda HF2218 is a small tractor with vertical general-purpose Honda GXV610 V-twin engine 614 cc (37.5 cu-in).
The Honda GXV610 engine has an OHV (overhead valve) design with 90° V-twin cylinders; horizontal type carburetor with butterfly valve; electric starter and transistorized magneto ignition system.
Cylinder bore is 77.0 mm (3.0 in) and piston stroke is 66.0 mm (2.6 in), compression ratio rating is 8.3:1. The GXV610 engine produced 18.0 HP (13.4 kW) of horsepower at 3,600 rpm and 43.1 N·m (4.39 kg·m, 31.7 ft·lb) of torque at 2,500 rpm.
Honda HF2218 specifications
|Length||1780 mm (70.1 in)|
|Width||950 mm (37.4 in)|
|Height||1070 mm (42.1 in)|
|Weight||240 kg (529.1 lbs)|
|Front tires size||13×5.0-6|
|Front tires pressure||1.5 bar (150 kPa)|
|Rear tires size||18×8.5-8|
|Rear tires pressure||1.2 bar (120 kPa)|
|Fuel tank capacity||7.0 l|
|Engine model||Honda GXV610|
|Displacement||614 cm3 (37.5 cu-in)|
|Bore x stroke||77.0 X 66.0 mm (3.0 x 2.6 in)|
|Max. horsepower||18.0 HP (13.4 kW) at 3,600 rpm|
|Max. torque||43.1 N·m (4.39 kg·m, 31.7 ft·lb) at 2,500 rpm|
|Carburetor||Horizontal type, butterfly valve|
|Ignition system||Transistorized magneto ignition|
|Lubricating system||Forced lubrication|
|Starting system||Electric starter|
|Stoping system||Ignition primary circuit ground|
|Fuel used||Unleaded gasoline (octane number 86 or higher)|
|Spark plug||NGK: ZGR5A
|Oil type||Honda 4-stroke or an equivalent (SJ or later)|
|Recommended oil||SAE 10W-30|
With oil filter: 2.2 L (2.3 US. qt, 1.9 Imp. qt.)
Without oil filter: 1.70 L (1.8 US. qt, 1.5 Imp. qt.)
Forward: 8.3 km/h (5.2 mph)
Reverse: 4.0 km/h (2.5 mph)
