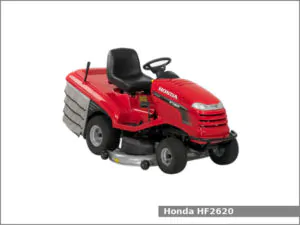

Honda HF2620

Honda HF2620The Honda HF2620 is a 2WD lawn tractor from the HF series. This tractor was manufactured by Honda from 2004 to 2012. The Honda HF2620 is equipped with a 0.6 L (37.5 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Honda HF2620 lawn tractor used the Honda GXV620 engine. It is a 0.6 L, 614 cm2, (37.5 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 66.0 mm (2.6 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 2,800 rpm of output power.

The Honda HF2620 is equipped with manual steering, an open operator station, 5.4 liters (1.4 US gal.; 1.2 Imp. gal) fuel tank, and a mid-mount 1,210 mm (48 inches) mower deck.
This lawn-tractor was available as the HF2620HT variant with electric dump.

Honda HF2620 Specifications

General Specifications
Model Honda HF2620
Length 1,860 mm (73.2 in)
Height (steering wheel) 1,120 mm (44.1 in)
Wheel base 1,150 mm (45.3 in)
Weight 244 kg (538 lbs)
HT: 254 kg (560 lbs)
Fuel tank capacity 5.4 liters (1.4 US gal.; 1.2 Imp. gal)
Battery 12V, 24Ah
Cabin type Open operator station
Engine model Honda GXV620
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 614 cm2, (37.5 cu·in)
Bore and stroke 77.0 mm X 66.0 mm (3.03 in X 2.6 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 2,800 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Transmission model
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.2 kmh (5.1 mph) Reverse: 4.2 kmh (2.6 mph)
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 18×8.50-8
PTO (Power take-off shaft)
Middle PTO type Independent with electro-magnetic clutch
Middle PTO speed
