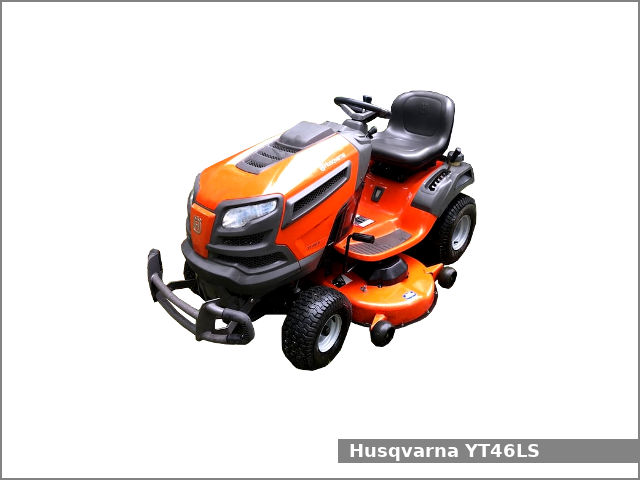

The Husqvarna YT46LS is a 2WD lawn tractor manufactured by Husqvarna from 2013. The Husqvarna YT46LS is equipped with a 0.7 L (44.3 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.
The Husqvarna YT46LS lawn tractor used the Kawasaki FR651 engine. It is a 0.7 L, 726 cm2, (44.3 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. The compression ratio rating is 8.2:1. This engine produced 21.8 PS (16.0 kW; 21.5 HP) at 3,600 rpm of output power and 53.3 N·m (5.4 kg·m, 39.3 ft·lb) at 2,200 rpm of torque.
The Husqvarna YT46LS is equipped with an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and a mid-mount 1,160 mm (46 in) mower deck with 2-blades.
Husqvarna YT46LS Specifications
|Length||1,750 mm (68.9 in)|
|Width||1,210 mm (47.6 in)|
|Height||1,050 mm (41.3 in)|
|Wheel base||1,210 mm (47.6 in)|
|Weight||206 kg (455 lbs)|
|Fuel tank capacity||11.4 liters (3 US gal.; 2.5 Imp. gal)|
|Battery||12V, CCA 230A, 28Ah|
|Cabin type||Open operator station|
|Engine model||Kawasaki FR651|
|Engine type||Four-stroke, air-cooled, V|
|Displacement||0.7 L, 726 cm2, (44.3 cu·in)|
|Bore and stroke||78.0 mm X 76.0 mm (3.07 in X 2.99 in)|
|Horsepower||21.8 PS (16.0 kW; 21.5 HP) at 3,600 rpm|
|Torque||53.3 N·m (5.4 kg·m, 39.3 ft·lb) at 2,200 rpm|
|Oil type||SAE 5W-30|
|Oil capacity:||1.9 L (2 US. qt, 1.7 Imp. qt.)|
|Spark plug||NGK BPR4ES|
|Transmission and chassis|
|Transmission model||Tuff Torq K46|
|Transmission type||Belt-driven hydrostatic|
|Gears||Infinite forward and reverse|
|Speed||Forward: 8.8 kmh (5.5 mph) Reverse: 3.9 (2.4 mph)|
|Front tires||Lawn/turf: 15×6-6|
|Rear tires||Lawn/turf: 20×8-8|
|PTO (Power take-off shaft)|
|Rear PTO type||Independent with electric clutch|
|Rear PTO speed||–|
