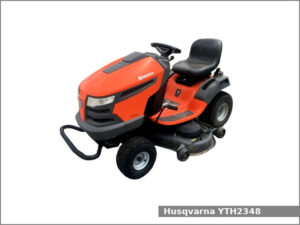

Husqvarna YTH2348

Husqvarna YTH2348The Husqvarna YTH2348 is a 2WD lawn tractor manufactured by Husqvarna from 2007 to 2011. The Husqvarna YTH2348 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH2348 lawn tractor used the Briggs & Stratton Intek engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin naturally aspirated gasoline engine with 79.2 mm (3.12 in) of the cylinder bore and 73.4 mm (2.89 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Husqvarna YTH2348 is equipped with manual steering, an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and mid-mount 1,210 mm (48 inches) mower deck with 3-blades.

Husqvarna YTH2348 Specifications

General Specifications
ModelHusqvarna YTH2348
Length1,750 mm (68.9 in)
Width1,280 mm (50.4 in)
Height1,050 mm (41.3 in)
Wheel base–
Weight207 kg (456 lbs)
Fuel tank capacity11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery12V, 28Ah
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton Intek
Engine typeFour-stroke, air-cooled, inline
Cylinders2
Fuel typeGasoline
Displacement0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke79.2 mm X 73.4 mm (3.12 in X 2.89 in)
Horsepower23.4 PS (17.2 kW; 23.1 HP) at 3,600 rpm
StarterElectric
Oil typeSG or SL, SAE 5W30
Oil capacity:1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plugChampion QG12YC
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes–
Transmission modelTuff Torq
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.7 (2.9 mph)
Tires
Front tiresLawn/turf: 15×6-6
Rear tiresLawn/turf: 20×8-8
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO speed–
