John Deere 1010

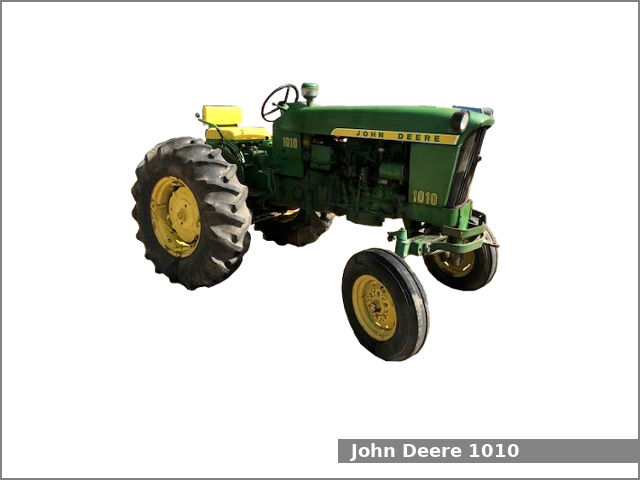

John Deere 1010The John Deere 1010 is a 2WD utility tractor from the New Generation series. This tractor was manufactured by the John Deere in Dubuque, Iowa, USA from 1960 to 1965.

The John Deere 1010 is equipped with one of two engines: a 2.4 L four-cylinder diesel engine or a 1.9 L four-cylinder gasoline engine and sliding gear transmission with dry disc clutch and 5 forward and 1 reverse gear.

The JD 1010 is equipped with manual or power (optional) steering, mechanical disc brakes, open operator station, and 45.4 liters (12 US gal.; 10 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • John Deere diesel. It is a 2.4 L, 2,368 cm2, (144.5 cu·in) four-cylinder natural aspirated diesel engine with 92.0 mm (3.62 in) of the cylinder bore and 89.0 mm (3.5 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 36.6 PS (26.9 kW; 36.0 HP) at 2,500 rpm of PTO output power.
  • John Deere gas. It is a 1.9 L, 1,893 cm2, (115.5 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 76.0 mm (2.99 in). The compression ratio rating is 8.3:1. This engine produced 36.6 PS (26.9 kW; 36.0 HP) at 2,500 rpm of PTO horsepower.

The John Deere tractor variants:

  • 1010RU: row-crop utility
  • 1010C: crawler
  • 1010U: utility
  • 1010RS: single row-crop
  • 1010R: row-crop
  • 1010O: orchard
  • 1010RUS: special row-crop utility
  • 1010W: wheeled industrial
  • John Deere 1010 Specifications

    General Specifications
    Model John Deere 1010
    Length
    Width
    Height
    Wheel base
    Weight 1,780 kg (3,925 lbs)
    Fuel tank capacity 45.4 liters (12 US gal.; 10 Imp. gal)
    Battery 12V
    Cabin type Open operator station
    Engine
    Engine model John Deere
    Engine type Four-stroke, liquid-cooled, inline
    Cylinders 4
    Fuel type Diesel
    Displacement 2.4 L, 2,368 cm2, (144.5 cu·in)
    Bore and stroke 92.0 mm X 89.0 mm (3.62 in X 3.5 in)
    Compression ratio 18.0:1
    Horsepower 36.6 PS (26.9 kW; 36.0 HP) at 2,500 rpm
    Starter Electric
    Oil capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
    Engine
    Engine model John Deere
    Engine type Four-stroke, liquid-cooled, inline
    Cylinders 4
    Fuel type Gasoline
    Displacement 1.9 L, 1,893 cm2, (115.5 cu·in)
    Bore and stroke 89.0 mm X 76.0 mm (3.5 in X 2.99 in)
    Compression ratio 8.3:1
    Horsepower 36.6 PS (26.9 kW; 36.0 HP) at 2,500 rpm
    Starter electric
    Transmission and chassis
    Chassis 4×2 2WD
    Steering type Manual or power (optional)
    Brakes Mechanical disc
    Transmission model
    Transmission type Sliding gear with dry disc clutch
    Gears 5 forward and 1 reverse
    Tires
    Front tires Ag: 5.00-15, 6.00-16
    Rear tires Ag: 10-34, 12-28
    Three-Point Hitch
    Caterogy I
    Control type
    Lift capacity (at ends)
    PTO (Power take-off shaft)
    Rear PTO type Transmission or independent (optional)
    Rear PTO spped 540, 540/1,000 rpm
    Hydraulic system
    Hydraulic type Open center
    Hydraulic capacity 17.0 L (17.96 US. qt, 14.96 Imp. qt.)
