John Deere 1070

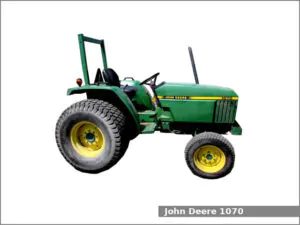

John Deere 1070The John Deere 1070 is a 2WD or 4WD compact utility tractor from the 70 Compact series. This tractor was manufactured by Yanmar for distributor John Deere in Japan from 1989 to 1998. The John Deere 1070 is equipped with a 1.9 L (116.3 cu·in) four-cylinder diesel engine and a partially synchronized transmission with 9 forward and 2 reverse gears and dry disc clutch .

The JD 1070 compact utility tractor used the Yanmar 4TN84 engine. It is a 1.9 L, 1,906 cm2, (116.3 cu·in) four-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 39 PS (28.7 kW; 38.5 HP) at 2,600 rpm of output power.

The John Deere 1070 is equipped with power steering, differential wet disc brakes, two-post ROPS with canopy (optional), and 40.1 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Following attachments are available for the JD 1070 compact utility tractor:

  • Mid-mount John Deere 72 1,840 mm (72 in) mower deck with 3-blades and hydraulic lift
  • Front-mount John Deere 390 2,130 mm (84 in) blade
  • Front-mount John Deere 80 loader
  • John Deere 8A backhoe

John Deere 1070 Specifications

General Specifications
Model John Deere 1070
Length 3,120 mm (122.8 in)
Width 1,640 mm (64.6 in)
Height ROPS: 2,120 mm (83.5 in)
Wheel base
Ground clearance 2WD: 340 mm (13.4 in)
4WD: 390 mm (15.4 in)
Weight (operating) 2WD: 1,350 kg (2,976 lbs)
4WD: 1,480 kg (3,263 lbs)
Fuel tank capacity 40.1 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V, CCA 550A
Cabin type Two-post ROPS with canopy (optional)
Engine
Engine model Yanmar 4TN84
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 1.9 L, 1,906 cm2, (116.3 cu·in)
Bore and stroke 84.0 mm X 86.0 mm (3.31 in X 3.39 in)
Compression ratio 17.8:1
Horsepower 39 PS (28.7 kW; 38.5 HP) at 2,600 rpm
Starter Electric
Oil capacity: 5.3 L (5.6 US. qt, 4.7 Imp. qt.)
Coolant capacity: 5.8 L (6.1 US. qt, 5.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential wet disc
Final drive Planetary
Differential lock Foot-activated standard
Transmission model
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 2 reverse
Speed Forward: 19.8 kmh (12.3 mph) Reverse: 7.7 (4.8 mph)
Transmission oil capacity 20.8 L (5.5 US. gal, 4.6 Imp. gal.)
Tires
Front tires Ag: 6.00-16 (2WD), 8-16 (4WD)
Lawn/turf: 27×8.50-15
Rear tires Ag: 13.6-24 (2WD), 13.6-28 (4WD)
Lawn/turf: 44×18.00-20
Three-Point Hitch
Category I
Control type Load and depth control
Lift capacity (at 610 mm/ 24 in) 915 kg (2,020 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO speed 2,100 rpm
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 20.8 L (5.5 US. gal, 4.6 Imp. gal.)
Pressure 2250 psi (155.1 bar)
Total flow 9.0 gpm (34.1 lpm)
