John Deere 110TLB

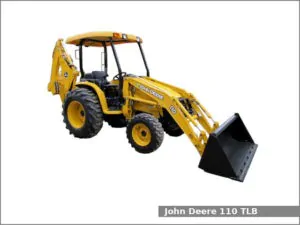

John Deere 110TLBThe John Deere 110TLB is a 4WD backhoe loader tractor from the series. This tractor was manufactured by the John Deere from 2000 to 2012. The John Deere 110TLB is equipped with a 2.2 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The John Deere 110TLB backhoe loader tractor used the Yanmar 4TNV88 engine. It is a 2.2 L, 2,189 cm2, (133.6 cu·in) four-cylinder natural aspirated diesel engine with 88,0 mm (3.46 in) of the cylinder bore and 90,0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 41.6 PS (30.6 kW; 41.0 HP) at 2,600 rpm of maximum output power.

The John Deere 110TLB is equipped with power steering, mechanical wet disc brakes, four-post ROPS and 58.0 liters (15.3 US gal.; 12.8 Imp. gal) fuel tank.

Following attachments are available for the John Deere 110TLB backhoe loader tractor:

  • John Deere loader
  • John Deere backhoe

John Deere 110TLB Specifications

General Specifications
Model John Deere 110TLB
Length 7,510 mm (295.7 in)
Width 2,180 mm (85.8 in)
Height 2,560 mm (100.8 in)
Wheel base 1,810 mm (71.3 in)
Weight 3,447 kg (7,599 lbs)
Fuel tank capacity 58.0 liters (15.3 US gal.; 12.8 Imp. gal)
Battery 12V, CCA 770A
Cabin type Four-post ROPS
Engine
Engine model Yanmar 4TNV88
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2189 cm2, (133.6 cu·in)
Bore and stroke 88,0 mm X 90,0 mm (3.46 in X 3.54 in)
Compression ratio 19.0:1
Horsepower 41.6 PS (30.6 kW; 41 HP) at 2,600 rpm
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Mechanical wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 26.1 kmh (16.2 mph) Reverse: (0 mph)
Tires
Front tires Industrial: 10×16.5
Rear tires Industrial: 17.5×24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 1,420 kg (3,131 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 56.8 L (60.02 US. qt, 49.98 Imp. qt.)
Pressure 3000 psi (206.8 bar)
Total flow 23.6 gpm (89.3 lpm)
