John Deere 1650

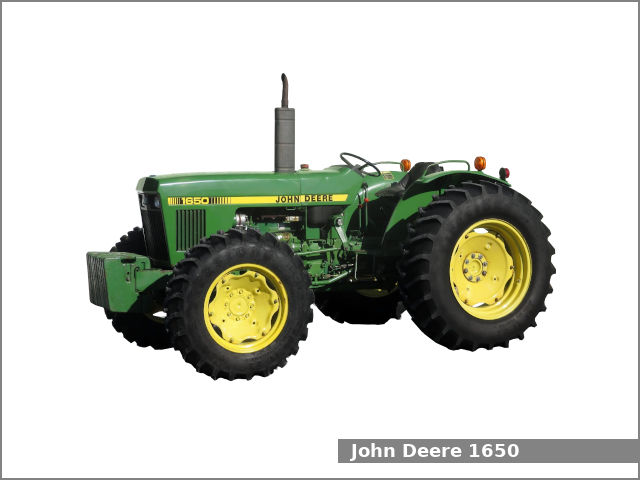

John Deere 1650The John Deere 1650 is a 2WD or 4WD utility tractor manufactured by Yanmar for distributor John Deere from 1984 to 1988. The John Deere 1650 is equipped with a 3.1 L (190.0 cu·in) four-cylinder diesel engine and a sliding gear transmission with 9 forward and 3 reverse gears.

The JD 1650 utility tractor used the Yanmar engine. It is a 3.1 L, 3,114 cm2, (190.0 cu·in) four-cylinder turbocharged diesel engine with 95.0 mm (3.74 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 68 PS (50.0 kW; 67.0 HP) of output power.

The John Deere 1650 is equipped with power steering, differential hydraulic wet disc brakes, an open operator station with two-post ROPS, and 80.0 liters (21.1 US gal.; 17.6 Imp. gal) fuel tank.

John Deere 1650 Specifications

General Specifications
Model John Deere 1650
Length
Width
Height
Wheel base 2,100 mm (82.7 in)
Weight (shipping) 2WD: 2,100 kg (4,630 lbs)
4WD: 2,400 kg (5,291 lbs)
Fuel tank capacity 80.0 liters (21.1 US gal.; 17.6 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.1 L, 3,114 cm2, (190.0 cu·in)
Bore and stroke 95.0 mm X 110.0 mm (3.74 in X 4.33 in)
Compression ratio 18.0:1
Horsepower 68 PS (50.0 kW; 67.0 HP)
Starter Electric
Oil capacity: 12.0 L (12.7 US. qt, 10.6 Imp. qt.)
Coolant capacity: 10.5 L (11.1 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Final drive Planetary
Differential lock Mechanical
Transmission model
Transmission type Sliding gear
Gears 9 forward and 3 reverse
Speed Forward: 25.6 kmh (15.9 mph)
Tires
Front tires Ag: 6.50-16
Rear tires Ag: 16.9-28
Three-Point Hitch
Category II/I
Control type Center link sensing with position and draft contro
Lift capacity (at 610 mm/ 24 in) 1,220 kg (2,690 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 0 to 2
Total flow 10.2 gpm (38.6 lpm)
