John Deere 2010

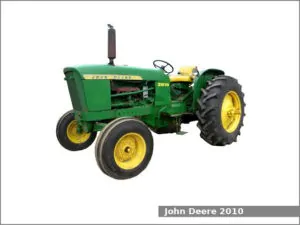

John Deere 2010The John Deere 2010 is a 2WD row-crop tractor from the New Generation series. This tractor was manufactured by John Deere in Dubuque, Iowa, USA from 1960 to 1965.

The John Deere 2010 tractor used one of two engines: a 2.4 L (144.5 cu·in) four-cylinder gasoline / LP-gas engine or a 2.7 L (165.1 cu·in) four-cylinder diesel engine and the Syncro-Range transmission with 8 forward and 3 reverse gears.

The JD 2010 is equipped with manual or power (optional) steering, differential mechanical dry disc brakes, open operator station, and 60.6 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • John Deere. It is a 2.4 L, 2,368 cm2, (144.5 cu·in) four-cylinder natural aspirated gasoline or LP-gas engine with 92.0 mm (3.62 in) of the cylinder bore and 89.0 mm (3.5 in) of the piston stroke. The compression ratio rating is 8.3:1 for gasoline version.
  • John Deere. It is a 2.7 L, 2,705 cm2, (165.1 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 89.0 mm (3.5 in). The compression ratio rating is 19.0:1.

John Deere 2010 Specifications

General Specifications
Model John Deere 2010
Length 3,540 mm (139.4 in)
Width 1,800 mm (70.9 in)
Height 1,930 mm (76 in)
Wheel base 2,200 mm (86.6 in)
Weight Gasoline: 2,290 kg (5,049 lbs)
Diesel: 2,320 kg (5,120 lbs)
Fuel tank capacity 60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline / LP-gas
Displacement 2.4 L, 2,368 cm2, (144.5 cu·in)
Bore and stroke 92.0 mm X 89.0 mm (3.62 in X 3.5 in)
Compression ratio 8.3:1
Horsepower
Starter Electric
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.7 L, 2,705 cm2, (165.1 cu·in)
Bore and stroke 98.0 mm X 89.0 mm (3.86 in X 3.5 in)
Compression ratio 19.0:1
Horsepower
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual or power (optional)
Brakes Differential mechanical dry disc
Transmission model Syncro-Range
Transmission type
Gears 8 forward and 3 reverse
Speed Forward: 31.0 kmh (19.3 mph) Reverse: 14.5 (9 mph)
Tires
Front tires Ag: 6.00-16, 6.50-16, 7.50-16, 6.00-14, 6.50-16
Rear tires Ag: 12.4-28, 13.6-28, 14.9-28, 11.2-36, 12.4-36, 13.9-36
PTO (Power take-off shaft)
Rear PTO type Live (optional)
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 30.3 L (8.0 US gal, 6.7 Imp. gal)
Pressure 1150 psi (79.3 bar)
Valves 1 or 2
Total flow 11.0 gpm (41.6 lpm)
