John Deere 2025R

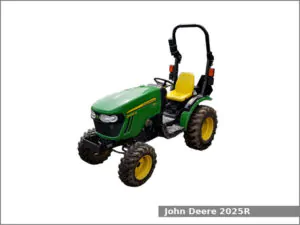

John Deere 2025RThe John Deere 2025R is a 4WD compact utility tractor from the 2R series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2017 to 2020, the first generation was manufactured from 2013 to 2020. The John Deere 2025R is equipped with a 1.3 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The JD 2025R compact utility tractor used the Yanmar 3TNV80F engine. It is a 1.3 L, 1,267 cm2, (77.3 cu·in) three-cylinder natural aspirated diesel engine with 80.0 mm (3.15 in) of the cylinder bore and 84.0 mm (3.31 in) of the piston stroke. The compression ratio rating is 23.0:1. This engine produced 24.2 PS (17.8 kW; 23.9 HP) at 3,200 rpm of gross output power.

The John Deere 2025R is equipped with power steering, wet disc brakes, open operator station with two-post ROPS and 20.4 liters (5.4 US gal.; 4.5 Imp. gal) fuel tank.

Following attachments are available for JD 2025R compact utility tractor:

  • Mid-mount John Deere 54D 54 in (1,370 mm) mower deck
  • Mid-mount John Deere 60D 60 in (1,520 mm) mower deck
  • Front-mount John Deere 54 in (1,370 mm) blade
  • Front-mount John Deere 60 in (1,520 mm) blade
  • Front-mount John Deere 47 in (1,190 mm) two-stage snow blower
  • Front-mount John Deere 54 in (1,370 mm) two-stage snow blower
  • John Deere 120R loader
  • John Deere 270B backhoe

John Deere 2025R Specifications

General Specifications
Model John Deere 2025R
Length 2,810 mm (110.6 in)
Width 1,210 mm (47.6 in)
Height 2,380 mm (93.7 in)
Wheel base 1,600 mm (63 in)
Weight 775 kg (1,708 lbs)
Fuel tank capacity 20.4 liters (5.4 US gal.; 4.5 Imp. gal)
Battery 12V CCA: 500A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNV80F
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,267 cm2, (77.3 cu·in)
Bore and stroke 80.0 mm X 84.0 mm (3.15 in X 3.31 in)
Compression ratio 23.0:1
Horsepower 24.2 PS (17.8 kW; 23.9 HP) at 3,200 rpm
Torque 62.0 N·m (6.3 kg·m, 45.7 ft·lb) at 1,625 rpm
Starter Electric
Oil capacity: 2.7 L (2.85 US. qt, 2.38 Imp. qt.)
Coolant capacity: 3.7 L (3.91 US. qt, 3.26 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Spur gear
Differential lock Mechanical rear
Front axle case capacity 2.8 liters (3.0 US.qts, 2.5 Imp. qts)
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 19.8 kmh (12.3 mph) Reverse: 19.8 (12.3 mph)
Transmission oil capacity 14.4 L (3.8 US. gal, 3.2 Imp. gal.)
Tires
Front tires Industrial: 23×8.50-12
Lawn/turf: 23×8.50-12, 220/55-R12
Rear tires Industrial: 12-16.5
Lawn/turf: 31×13.5-15, 280/70-R16
Three-Point Hitch
Caterogy I Limited
Control type Position control
Lift capacity (at ends) 560 kg (1,235 lbs)
PTO (Power take-off shaft)
Front PTO type Independent (option)
Front PTO spped 2,000 rpm
Middle PTO type Independent
Middle PTO spped 2,000 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 9.8 L (10.36 US. qt, 8.62 Imp. qt.)
Pressure 2,150 psi (148 bar)
Pump flow 3.5 gpm (13.2 lpm)
Steering flow 3.5 gpm (13.2 lpm)
Total flow 7.0 gpm (26.5 lpm)
