John Deere 2032R (2013-2016)

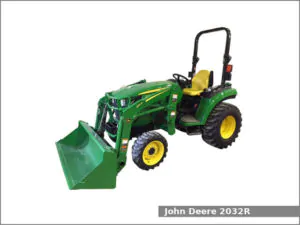

John Deere 2032RThe John Deere 2032R is a 4WD compact utility tractor from the 2R series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2013 to 2019. This first generation was manufactured from 2013 to 2016. The John Deere 2032R is equipped with a 1.6 L (100.0 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The JD 2032R compact utility tractor used the Yanmar 3TNV88 engine. It is a 1.6 L, 1,638 cm2, (100.0 cu·in) three-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.1:1. This engine produced 32.5 PS (23.9 kW; 32.0 HP) at 2,500 rpm of output power.

The John Deere 2032R is equipped with power steering, wet disc brakes, two-post foldable ROPS, and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.

Following attachments are available for the JD 2032R compact utility tractor:

  • Mid-mount John Deere 62D: 1,570 mm (62 in) mower deck
  • Mid-mount John Deere: 1,820 mm (72 in) mower deck
  • Front-mount John Deere: 1,370 mm (52 in) blade
  • Front-mount John Deere: 1,370 mm (52 in) two-stage snowblower
  • John Deere H130 loader
  • John Deere 46 backhoe

John Deere 2032R Specifications

General Specifications
Model John Deere 2032R
Length 2,760 mm (108.7 in)
Width 1,410 mm (55.5 in)
Height ROPS: 2,270 mm (89.4 in)
Wheel base 1,650 mm (65 in)
Ground clearance (front axle) 330 mm (13 in)
Weight (shipping) 894 kg (1,971 lbs)
Fuel tank capacity 27.0 liters (7.1 US gal.; 5.9 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post foldable ROPS
Engine
Engine model Yanmar 3TNV88
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,638 cm2, (100.0 cu·in)
Bore and stroke 88.0 mm X 90.0 mm (3.46 in X 3.54 in)
Compression ratio 19.1:1
Horsepower 32.5 PS (23.9 kW; 32.0 HP) at 2,500 rpm
Starter Electric
Oil capacity: 3.4 L (3.6 US. qt, 3 Imp. qt.)
Coolant capacity: 4.0 L (4.2 US. qt, 3.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Spur gear
Differential lock Standard
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 21.7 kmh (13.5 mph) Reverse: 21.7 kmh (13.5 mph)
Transmission oil capacity 14.8 L (3.9 US. gal, 3.3 Imp. gal.)
Tires
Front tires Lawn/turf: 24×8.5-14
Industrial: 23×8.5-12
Rear tires Lawn/turf: 36×14.00-15
Industrial: 14-17.5
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 650 kg (1,433 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,100 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 14.8 L (3.9 US. gal, 3.3 Imp. gal.)
Pressure 2420 psi (166.9 bar)
Valves 2
Pump flow 5.0 gpm (18.9 lpm)
Steering flow 5.5 gpm (20.8 lpm)
Total flow 10.5 gpm (39.7 lpm)
