John Deere 2038R

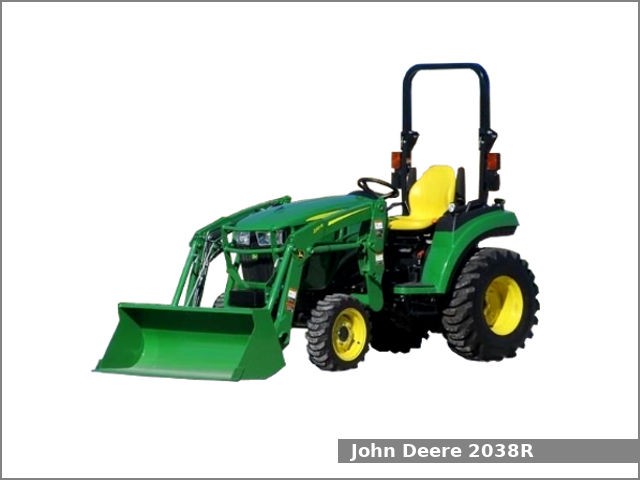

John Deere 2038RThe John Deere 2038R is a 4WD compact utility tractor from the 2R series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2017. The JD 2038R is equipped with a 1.6 L three-cylinder turbocharged diesel engine and hydrostatic transmission with infinite forward and reverse gears.

The John Deere 2038R compact utility tractor used the Yanmar 3TNV88C-NJT engine. It is a 1.6 L, 1,568 cm2, (95.7 cu·in) three-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.1:1. This engine produced 37.8 PS (27.8 kW; 37.3 HP) at 2,500 rpm of output power and 101.4 N·m (10.3 kg·m, 74.7 ft·lb) of torque.

The John Deere 2038R is equipped with power steering, wet disc brakes, two-post foldable ROPS and 32.2 liters (8.5 US gal.; 7.1 Imp. gal) fuel tank.

Following attachments are available for the JD 2038R compact utility tractor:

  • Mid-mount John Deere 60 in (1,520 mm) mower deck
  • Mid-mount John Deere 72 in (1,820 mm) mower deck
  • John Deere 220R loader

John Deere 2038R Specifications

General Specifications
Model John Deere 2038R
Wheel base 1,720 mm (67.7 in)
Weight 1,105 kg (2,436 lbs)
Fuel tank capacity 32.0 liters (8.5 US gal.; 7.1 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post foldable ROPS
Engine model Yanmar 3TNV88C-NJT
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1568 cm2, (95.7 cu·in)
Bore and stroke 86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Compression ratio 19.1:1
Horsepower 37.8 PS (27.8 kW; 37.3 HP) at 2,500 rpm
Torque 101.4 N·m (10.3 kg·m, 74.7 ft·lb)
Starter Electric
Oil capacity: 4.5 L (4.8 US. qt, 4 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Spur gear
Differential lock Mechanical rear
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Front tires Ag: 7.00-12
Rear tires Ag: 12.4-16
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 615 kg (1,356 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2500 psi (172.4 bar)
Valves 0 to 3
Pump flow 5.3 gpm (20.1 lpm)
Steering flow 4.0 gpm (15.0 lpm)
Total flow 9.3 gpm (35.2 lpm)
