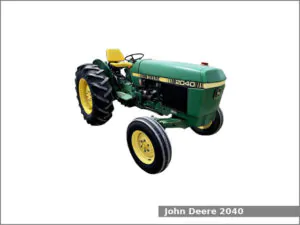

John Deere 2040 (1972-1979)

John Deere 2040The John Deere 2040 is a 2WD utility tractor from the 2040 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1976 to 1982. This first generation was manufactured from 1972 to 1979. The JD 2040 is equipped with a 2.7 L (164.4 cu·in) three-cylinder diesel engine and a collar shift with dry disc clutch transmission with 8 forward and 4 reverse gears.

The John Deere 2040 utility tractor used the John Deere engine. It is a 2.7 L, 2,694 cm2, (164.4 cu·in) three-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.7:1. This engine produced 40.5 PS (29.8 kW; 40.0 HP) at 2,500 rpm of output power.

The JD 2040 is equipped with power steering, hydraulic wet disc brakes, two-post Roll-Gard ROPS. and 62.5 liters (16.5 US gal.; 13.7 Imp. gal) fuel tank.

John Deere 2040 Specifications

General Specifications
Model John Deere 2040
Length 3,330 mm (131.1 in)
Width 2,270 mm (89.4 in)
Height (hood) 1,330 mm (52.4 in)
Wheel base 1,880 mm (74 in)
Ground clearance 330 mm (13 in)
Weight 2,180 kg (4,806 lbs)
Fuel tank capacity 62.5 liters (16.5 US gal.; 13.7 Imp. gal)
Battery 12V
Cabin type Two-post Roll-Gard ROPS.
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.7 L, 2,694 cm2, (164.4 cu·in)
Bore and stroke 102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Compression ratio 16.7:1
Horsepower 40.5 PS (29.8 kW; 40.0 HP) at 2,500 rpm
Starter Electric
Coolant capacity: 2.6 L (2.7 US. qt, 2.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Mechanical rear
Transmission model
Transmission type Collar shift with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 26.7 kmh (16.6 mph) Reverse: 7.9 kmh (4.9 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 13.6-28
Three-Point Hitch
Category I
Control type
Lift capacity (at 610 mm / 24 in) 1,088 kg (2,400 lbs)
PTO (Power take-off shaft)
Rear PTO type Live with dry disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center or closed center
Valves 1
