John Deere 2320

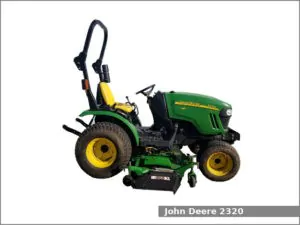

John Deere 2320The John Deere 2320 is a 4WD utility tractor from the 2000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2006 to 2012. The JD 2320 is equipped with a 1.1 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The John Deere 2320 utility tractor used the Yanmar 3TNV76 engine. It is a 1.1 L, 1,114 cm2, (68.0 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. The compression ratio rating is 23.4:1. This engine produced 24.5 PS (18.0 kW; 24.0 HP) at 3,000 rpm of maximum output power.

The JD 2320 is equipped with hydrostatic power steering, wet disc brakes, open operator station with two-post ROPS and 23.0 liters (6.1 US gal.; 5.1 Imp. gal) fuel tank. The John Deere 2320 can be equipped with John Deere 200CX loader.

John Deere 2320 Specifications

General Specifications
Model John Deere 2320
Length 2,770 mm (109.1 in)
Width 1,290 mm (50.8 in)
Height 2,260 mm (89 in)
Wheel base 1,600 mm (63 in)
Weight 752 kg (1,660 lbs)
Fuel tank capacity 23.0 liters (6.1 US gal.; 5.1 Imp. gal)
Battery 12V CCA: 500A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNV76
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,114 cm2, (68.0 cu·in)
Bore and stroke 76.0 mm X 82.0 mm (2.99 in X 3.23 in)
Compression ratio 23.4:1
Horsepower 24.5 PS (18.0 kW; 24.0 HP) at 3,000 rpm
Torque 56.5 N·m (5.8 kg·m, 41.6 ft·lb)
Starter Electric
Oil capacity: 3.2 L (3.38 US. qt, 2.82 Imp. qt.)
Coolant capacity: 3.2 L (3.38 US. qt, 2.82 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Final drive Spur gear
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Transmission oil capacity 9.8 L (2.6 US. gal, 2.2 Imp. gal.)
Tires
Front tires Lawn/turf/ind: 23×8.5-12
Rear tires Lawn/turf/ind: 31×12-16.5
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 650 kg (1,433 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,100 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 9.8 L (10.36 US. qt, 8.62 Imp. qt.)
Pressure 2,421 psi (167 bar)
Valves 2
Pump flow 3.4 gpm (12.9 lpm)
Steering flow 2.2 gpm (8.3 lpm)
Total flow 5.6 gpm (21.2 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
