John Deere 2630

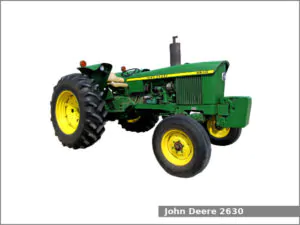

John Deere 2630The John Deere 2630 is a 2WD utility tractor from the Generation II series. This tractor was manufactured by John Deere in Dubuque, Iowa, USA from 1974 to 1975. The John Deere 2630 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and three variants of transmission.

The John Deere 2630 utility tractor used the John Deere engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 79.2 PS (58.2 kW; 78.0 HP) at 2,500 rpm of output power.

The JD 2630 is equipped with mechanical steering with power assist, differential hydraulic wet disc brakes, open operator station and 73.8 liters (19.5 US gal.; 16.2 Imp. gal) fuel tank.

John Deere 2630 Specifications

General Specifications
Model John Deere 2630
Wheel base 2,170 mm (85.4 in)
Weight 2,630 kg (5,800 lbs)
Fuel tank capacity 73.8 liters (19.5 US gal.; 16.2 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 79.2 PS (58.2 kW; 78.0 HP) at 2,500 rpm
Starter Electric
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Mechanical with power assist
Brakes Differential hydraulic wet disc
Transmission model
Transmission type
Gears 8 forward and 4 reverse
Transmission model
Transmission type Partial power shift with dry disc clutch
Gears 16 forward and 8 reverse
Transmission model Direction Reverser
Transmission type Power shuttle
Gears 8 forward and reverse
Front tires Ag: 6.00-16
Rear tires Ag: 16.9-28
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Optional
Front PTO speed 1,000 rpm
Rear PTO type Independent
Rear PTO speed 540 or 540/1,000 (optional) rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 38.0 L (40.15 US. qt, 33.44 Imp. qt.)
Pressure 2250 psi (155.1 bar)
Valves 1
Total flow 14.5 gpm (54.9 lpm)
24.5 gpm (92.7 lpm)
