John Deere 2720

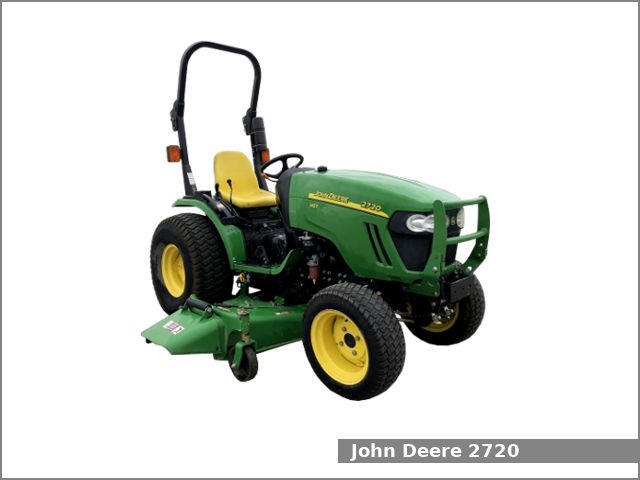

John Deere 2720The John Deere 2720 is a 4WD compact utility tractor from the 2000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2008 to 2012. The JD 2720 is equipped with a 1.6 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The John Deere 2720 compact utility tractor used the Yanmar 3TNV88 engine. It is a 1.6 L, 1,642 cm2, (100.2 cu·in) three-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.1:1. This engine produced 31.8 PS (23.4 kW; 31.4 HP) at 2,500 rpm of output power.

The John Deere 2720 is equipped with power steering, wet disc brakes, open operator station with folding ROPS and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.

Following attachments are available for the John Deere 2720 compact utility tractor:

  • John Deere 200CX loader
  • John Deere 46 backhoe

John Deere 2720 Specifications

General Specifications
Model John Deere 2720
Length 2,760 mm (108.7 in)
Width 1,330 mm (52.4 in)
Height 2,270 mm (89.4 in)
Wheel base 1,650 mm (65 in)
Weight 900 kg (1,985 lbs)
Fuel tank capacity 27.0 liters (7.1 US gal.; 5.9 Imp. gal)
Battery 12V, CCA 500A
Cabin type Open operator station with folding ROPS
Engine
Engine model Yanmar 3TNV88
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,642 cm2, (100.2 cu·in)
Bore and stroke 88.0 mm X 90.0 mm (3.46 in X 3.54 in)
Compression ratio 19.1:1
Horsepower 31.8 PS (23.4 kW; 31.4 HP) at 2,500 rpm
Starter Electric
Oil capacity: 3.4 L (3.6 US. qt, 3 Imp. qt.)
Coolant capacity: 4.0 L (4.2 US. qt, 3.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Spur gear
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 21.7 kmh (13.5 mph) Reverse: 21.7 (13.5 mph)
Transmission oil capacity 14.8 L (3.9 US. gal, 3.3 Imp. gal.)
Tires
Front tires Lawn/turf: 23×8.5-12
Rear tires Lawn/turf: 36×14.00-15
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 650 kg (1,433 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,100 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2420 psi (166.9 bar)
Valves 2
Pump flow 5.0 gpm (18.9 lpm)
Steering flow 5.5 gpm (20.8 lpm)
Total flow 10.5 gpm (39.7 lpm)
