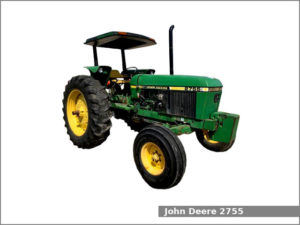

The John Deere 2755 is a 2WD or 4WD utility tractor from the 55 Utility series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany, and Saltillo, Mexico from 1984 to 1992. The John Deere 2755 is equipped with a 3.9 L (239.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with a dry disc clutch and 8 forward and 4 reverse gears or a partial power shift transmission with 16 forward and 8 reverse gears.
The John Deere 2755 utility tractor used the John Deere engine. It is a 3.9 L, 3,917 cm2, (239.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 89.2 PS (65.6 kW; 88.0 HP) at 2,300 rpm of output power.
The JD 2755 is equipped with power or hydrostatic power steering, differential hydraulic wet disc brakes, Roll-Gard ROPS or Sound-Gard cab and 84.0 liters (22.2 US gal.; 18.5 Imp. gal) fuel tank.
John Deere 2755 Specifications
| General Specifications | |
| Model | John Deere 2755 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | 2,260 mm (89 in) |
| Weight |
2WD with ROPS: 2,840 kg (6,260 lbs) 2WD with Cab: 3,265 kg (7,200 lbs) 4WD with ROPS: 3,235 kg (7,135 lbs) 4WD with Cab: 3,715 kg (8,190 lbs) |
| Fuel tank capacity | 84.0 liters (22.2 US gal.; 18.5 Imp. gal) |
| Battery | Two 12V, CCA 400A |
| Cabin type | Roll-Gard ROPS or Sound-Gard cab |
| Engine | |
| Engine model | John Deere |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 3.9 L, 3,917 cm2, (239.0 cu·in) |
| Bore and stroke | 106.0 mm X 110.0 mm (4.17 in X 4.33 in) |
| Compression ratio | 17.8:1 |
| Horsepower | 89.2 PS (65.6 kW; 88.0 HP) at 2,300 rpm |
| Starter | Electric |
| Oil capacity: | 10.0 L (10.6 US. qt, 8.8 Imp. qt.) |
| Coolant capacity: | 13.0 L (13.7 US. qt, 11.4 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power or hydrostatic power |
| Brakes | Differential hydraulic wet disc |
| Transmission model | John Deere Top-Shaft Synchronized (TSS) |
| Transmission type | Partially synchronized with dry disc clutch |
| Gears | 8 forward and 4 reverse |
| Speed | Forward: 23.8 kmh (14.8 mph) Reverse: 7.9 (4.9 mph) |
| Transmission model | John Deere Hi-Lo Top-Shaft Synchronized (TSS) |
| Transmission type | Partial power shift |
| Gears | 16 forward and 8 reverse |
| Speed | Forward: 23.8 kmh (14.8 mph) Reverse: 7.9 (4.9 mph) |
| Transmission model | |
| Transmission type | John Deere Top-Shaft Synchronized Creeper |
| Gears | 12 forward and 8 reverse |
| Tires | |
| Front tires | Ag: 7.50-18 |
| Rear tires | Ag: 16.9-24 |
| Three-Point Hitch | |
| Caterogy | II/I |
| Control type | – |
| Lift capacity (at ends) | 1,690 kg (3,720 lbs) |
| Front Hitch | |
| Caterogy | II (optional) |
| Lift capacity (at ends) | 1,530 kg (3,370 lbs) |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent |
| Front PTO speed | 1,000 rpm |
| Rear PTO type | Independent |
| Rear PTO speed | 540 or 540/1,000 rpm (optional) |
| Hydraulic system | |
| Hydraulic type | Closed center |
| Hydraulic capacity | 42.4 L (44.8 US. qt, 37.31 Imp. qt.) |
| Pressure | 2320 psi (160 bar) |
| Valves | 1 to 3 |
| Pump flow | 13.0 gpm (49.2 lpm) |
| Total flow | 21.0 gpm (79.5 lpm) |
