John Deere 2940

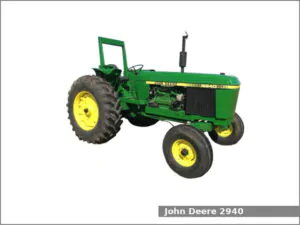

John Deere 2940The John Deere 2940 is a 2WD or 4WD utility tractor from the 2040 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1980 to 1982. The John Deere 2940 is equipped with a 5.9 L (359.0 cu·in) six-cylinder diesel engine and a partial power shift transmission with 16 forward and 8 reverse gears.

The John Deere 2940 utility tractor used the John Deere engine. It is a 5.9 L, 5,883 cm2, (359.0 cu·in) six-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.8:1. This engine produced 83.1 PS (61.1 kW; 82.0 HP) at 2,500 rpm of PTO output power.

The JD 2940 is equipped with power steering, differential hydraulic wet disc brakes, open operator station or Sound-Gard Cab (optional), and 125.9 liters (33.3 US gal.; 27.7 Imp. gal) fuel tank.

John Deere 2940 Specifications

General Specifications
Model John Deere 2940
Length 4,180 mm (164.6 in)
Width 2,290 mm (90.2 in)
Height 2,870 mm (113 in)
Wheel base 2,580 mm (101.6 in)
Ground clearance 650 mm (25.6 in)
Weight (ballasted) 4,830 kg (10,648 lbs)
Fuel tank capacity 125.9 liters (33.3 US gal.; 27.7 Imp. gal)
Battery 12V
Cabin type Open operator station or Sound-Gard Cab (optional)
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.9 L, 5,883 cm2, (359.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 16.8:1
Horsepower 83.1 PS (61.1 kW; 82.0 HP) at 2,500 rpm
Starter Electric
Coolant capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Final drive Planetary
Differential lock Mechanical rear
Transmission model John Deere TSS High-Low
Transmission type Partial power shift
Gears 16 forward and 8 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 12.1 (7.5 mph)
Front tires Ag: 10.00-16 (2WD), 12.4-28 (4WD)
Rear tires Ag: 18.4-34 (2WD), 16.9-38 (4WD)
Three-Point Hitch
Caterogy II
Control type Position control and lower-link draft sensing
Lift capacity (at ends) 1,090 kg (2,400 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Closed center
Pressure 2250 psi (155.1 bar)
Valves 2
Pump flow 23.0 gpm (87.1 lpm)
