John Deere 300D

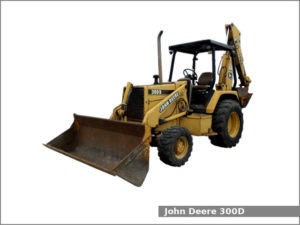

John Deere 300DThe John Deere 300D is a 2WD/4WD backhoe loader tractor manufactured by John Deere in from 1991 to 2001. The John Deere 300D is equipped with a 3.9 L four-cylinder diesel engine and helical gear transmission with 4 forward and 4 reverse gears.

The John Deere 300D backhoe loader tractor used the John Deere 4039D engine. It is a 3.9 L, 3,917 cm2, (239.0 cu·in) four-cylinder natural aspirated diesel engine with 106.5 mm (4.19 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm of net output power and 233 N·m (23.8 kg·m, 171.7 ft·lb) of torque.

The John Deere 300D is equipped with hydrostatic power steering, differential hydraulic wet disc brakes and 106.0 liters (28 US gal.; 23.3 Imp. gal) fuel tank.

John Deere 300D Specifications

General Specifications
Model John Deere 300D
Length 6,860 mm (270.1 in)
Width 2,320 mm (91.3 in)
Height 2,680 mm (105.5 in)
Wheel base 2,100 mm (82.7 in)
Weight 5,535 kg (12,202 lbs)
Fuel tank capacity 106.0 liters (28.0 US gal.; 23.3 Imp. gal)
Battery 12V, 95Ah
Cabin type Cab (standard)
Engine
Engine model John Deere 4039D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,917 cm2, (239.0 cu·in)
Bore and stroke 106.5 mm X 110.0 mm (4.19 in X 4.33 in)
Horsepower 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm
Torque 233 N·m (23.8 kg·m, 171.7 ft·lb)
Starter Electric
Oil type API: CE or CD, SAE: 5W-30, 10W-30
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 16.1 L (17 US. qt, 14.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model
Transmission type Helical gear, synchronized collar shift with hydraulic reverser
Gears 4 forward and 4 reverse
Speed Forward: 32.3 kmh (20.1 mph) Reverse: 28.9 (18 mph)
Transmission oil capacity 7.20 L (1.9 US. gal, 1.6 Imp. gal.)
Tires
Front tires Ind: 11L-15 (2WD), 12-16.5 (4WD)
Rear tires Ind: 16.9-24 (2WD), 17.5L-24 (4WD)
Hydraulic system
Hydraulic type –
Pressure 2,700 psi (186 bar)
Valves 60.6
Pump flow 24.0 gpm (90.8 lpm)
