John Deere 3045R

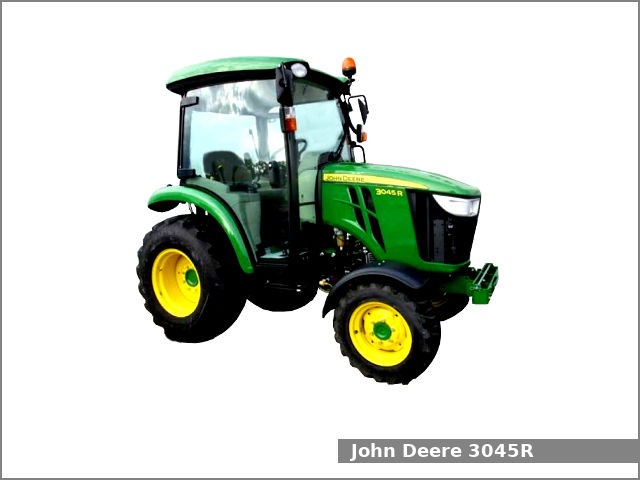

John Deere 3045RThe John Deere 3045R is a 4WD compact utility tractor from the 3R series. This tractor has been manufactured by John Deere since 2014. The JD 3045R is equipped with a 1.6 L three-cylinder turbocharged diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The John Deere 3045R compact utility tractor used the 3TNV84HT engine. It is a 1.6 L, 1568 cm2, (95.7 cu·in) three-cylinder turbocharged diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke and compression ratio rating is 19.0:1. This engine produced 44.6 PS (32.8 kW; 44.0 HP) at 2,600 rpm of gross output power and 140.0 N·m (14.3 kg·m, 103.2 ft·lb) at 1,800 rpm of maximum torque.

The John Deere 3045R is equipped with power steering, wet disc brakes, two-post folding ROPS or Cab (optional) and 51.1 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank for ROPS version or 44.5 liters (11.8 US gal.; 9.8 Imp. gal) fuel tank for Cab version.

John Deere 3045R Specifications

General Specifications
Model John Deere 3045R
Length 3,230 mm (127.2 in)
Width 1,320 mm (52 in)
Height ROPS: 2,360 mm (92.9 in)
Cab: 2,270 mm (89.7 in)
Wheel base 1,720 mm (67.7 in)
Weight ROPS: 1,400 kg (3,085 lbs)
Cab: 1,700 kg (3,750 lbs)
Fuel tank capacity ROPS: 51.1 liters (13.5 US gal.; 11.2 Imp. gal)
Cab: 44.5 liters (11.8 US gal.; 9.8 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model 3TNV84HT
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,568 cm2, (95.7 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 19.0:1
Horsepower 44.6 PS (32.8 kW; 44.0 HP) at 2,600 rpm
Torque 140.0 N·m (14.3 kg·m, 103.2 ft·lb) at 1,800 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: ROPS: 5.3 L (5.6 US. qt, 4.7 Imp. qt.)
Cab: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Spur gear
Differential lock Mechanical rear
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: – (0 mph)
Tires
Front tires Ag: 7.00-14
Rear tires Ag: 11.2-24
Rear Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,150 kg (2,540 lbs)
Front Hitch
Caterogy 0/I
Control type
Lift capacity (at ends) 1,100 kg (2,430 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 2,100 rpm
Middle PTO type Independent
Middle PTO speed 2,100 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 25.7 L (27.16 US. qt, 22.61 Imp. qt.)
Pump flow 8.6 gpm (32.6 lpm)
Steering flow 5.3 gpm (20.1 lpm)
Total flow 13.9 gpm (52.6 lpm)
