John Deere 310B

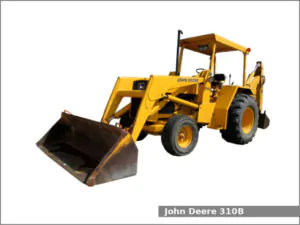

John Deere 310BThe John Deere 310B is a 2WD backhoe loader tractor from the series. This tractor was manufactured by John Deere in Dubuque, Iowa, USA from 1982 to 1986. The John Deere 310B is equipped with a 3.6 L (219.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 8 forward and 8 reverse gears.

The JD 310B backhoe loader tractor used the John Deere engine. It is a 3.6 L, 3,589 cm2, (219.0 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.2:1. This engine produced 66 PS (48.5 kW; 65.0 HP) at 2,500 rpm of output power.

The John Deere 310B is equipped with power steering, hydraulic wet disc brakes, four-post ROPS/FOPS or cab, and 73.8 liters (19.5 US gal.; 16.2 Imp. gal) fuel tank.

John Deere 310B Specifications

General Specifications
Model John Deere 310B
Length 7,180 mm (282.7 in)
Width 2,080 mm (81.9 in)
Height 3,420 mm (134.6 in)
Wheel base 2,080 mm (81.9 in)
Weight 5,985 kg (13,195 lbs)
Fuel tank capacity 73.8 liters (19.5 US gal.; 16.2 Imp. gal)
Battery 12V
Cabin type Four-post ROPS/FOPS or Cab
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.6 L, 3,589 cm2, (219.0 cu·in)
Bore and stroke 102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Compression ratio 16.2:1
Horsepower 66 PS (48.5 kW; 65 HP) at 2,500 rpm
Torque 217.0 N·m (22.1 kg·m, 159.9 ft·lb) at 1,300 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model –
Transmission type Power shuttle
Gears 8 forward and 8 reverse
Speed Forward: 26.4 kmh (16.4 mph) Reverse: 30.1 (18.7 mph)
Transmission oil capacity 32.2 L (8.5 US. gal, 7.1 Imp. gal.)
Tires
Front tires Ag: 7.50-16, 8.00-16, 11L-15
Rear tires Ag: 16.9-24, 19.5L-24
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 77.6 L (82 US. qt, 68.28 Imp. qt.)
Pressure 2320 psi (160 bar)
Total flow 38.0 gpm (143.8 lpm)
