John Deere 3130

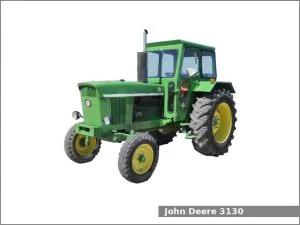

John Deere 3130The John Deere 3130 is a 2WD or 4WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1973 to 1979. The John Deere 3130 is equipped with a 5.4 L (329.0 cu·in) six-cylinder diesel engine and one of two transmissions: a hi-lo transmission with 12 forward and 6 reverse gears (JD 3130LS) or a sliding gear transmission with 6 forward and 3 reverse gears.

The JD 3130 utility tractor used the John Deere diesel engine. It is a 5.4 L, 5,391 cm2, (329.0 cu·in) six-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.2:1. This engine produced 97.9 PS (72.0 kW; 96.6 HP) at 2,500 rpm of output power.

The John Deere 3130 is equipped with power steering, wet disc brakes, an open operator station or cab (optional) and 106.0 liters (28 US gal.; 23.3 Imp. gal) fuel tank. This tractor could be equipped with the John Deere 148 loader.

John Deere 3130 Specifications

General Specifications
Model John Deere 3130
Length 4,000 mm (157.5 in)
Width 2,070 mm (81.5 in)
Height 2,620 mm (103.1 in)
Wheel base 2,460 mm (96.9 in)
Weight 3,720 kg (8,201 lbs)
Fuel tank capacity 106.0 liters (28 US gal.; 23.3 Imp. gal)
Battery Two 12V, 88Ah
Cabin type Open operator station or Cab (optional)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.4 L, 5,391 cm2, (329.0 cu·in)
Bore and stroke 102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Compression ratio 16.2:1
Horsepower 97.9 PS (72.0 kW; 96.6 HP) at 2,500 rpm
Torque 296.0 N·m (30.2 kg·m, 218.2 ft·lb) at 1,300 rpm
Starter Electric
Oil capacity: 10.3 L (10.9 US. qt, 9.1 Imp. qt.)
Coolant capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Planetary
Differential lock Mechanical rear
Transmission model
Transmission type Hi-Lo
Gears 12 forward and 6 reverse
Speed Forward: 24.7 kmh (15.4 mph) Reverse: 8.3 kmh (5.2 mph)
Transmission model
Transmission type Sliding gear
Gears 6 forward and 3 reverse
Tires
Front tires Ag: 7.50-18, 7.50-20 (2WD), 12.4-24 (4WD)
Rear tires Ag: 18.4-34, 16.9-38 (2WD), 16.9-38 (4WD)
Three-Point Hitch
Category II
Control type Position and draft control
Lift capacity (at ends) 3,380 kg (7,450 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Pump flow 23.0 gpm (87.1 lpm)
