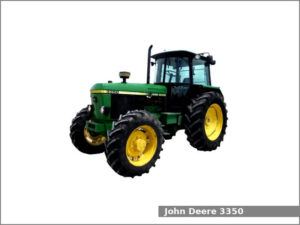

John Deere 3350

John Deere 3350The John Deere 3350 is a 2WD or 4WD utility tractor from the 3050 series. This tractor was manufactured by the John Deere in Mannheim, Baden-Württemberg, Germany and Rosario, Argentina from 1986 to 1993. The John Deere 3350 is equipped with a 5.9 L six-cylinder diesel engine and one of two transmissions with 16 forward and 8 reverse gears or 8 forward and 4 reverse gears.

The John Deere 3350 utility tractor used the John Deere 6359 engine. It is a 5.9 L, 5,882 cm2, (359.0 cu·in) six-cylinder natural aspirated diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.4:1. This engine produced 101.5 PS (74.6 kW; 100.0 HP) at 2,300 rpm of maximum output power and 370 N·m (37.7 kg·m, 272.7 ft·lb) at 1,400 rpm of peak torque.

The John Deere 3350 is equipped with power steering, hydraulic wet disc brakes, Sound-Gard (SG2) Cab with air-conditioning (option). (for some markets this tractor was available with an open operator station), and 121.0 liters (32.0 US gal.; 26.6 Imp. gal) or 173.0 liters (45.7 US gal, 38.0 Imp. gal) fuel tank.

John Deere 3350 Specifications

General Specifications
Model John Deere 3350
Length 4,780 mm (188.2 in)
Width 2,030 mm (79.9 in)
Height 2,840 mm (111.8 in)
Wheel base 2WD: 2,250 mm (88.6 in)
4WD: 2,580 mm (101.7 in)
Weight 2WD: 4,225 kg (9,314 lbs)
4WD: 4,935 kg (10,880 lbs)
Fuel tank capacity 121.0 liters (32.0 US gal; 26.6 Imp. gal)
173.0 liters (45.7 US gal; 38.0 Imp. gal)
Battery 12, 88Ah
Cabin type Sound-Gard (SG2) Cab with air-conditioning (option). Open operator station for some markets
Engine
Engine model John Deere 6359
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.9 L, 5,882 cm2, (359.0 cu·in)
Bore and stroke 107.0 mm X 110.0 mm (4.21 in X 4.33 in)
Compression ratio 17.4:1
Horsepower 101.5 PS (74.6 kW; 100.0 HP) at 2,300 rpm
Torque 370 N·m (37.7 kg·m, 272.7 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 11.5 L (12.2 US. qt, 10.1 Imp. qt.)
Coolant capacity: 19.0 L (20.1 US. qt, 16.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Mechanical rear
Transmission model
Transmission type Power Synchron
Gears 16 forward and 8 reverse
Speed Forward: 29.8 kmh (18.5 mph) Reverse: 12.9 (8 mph)
Transmission model
Transmission type
Gears 8 forward and 4 reverse
Speed Forward: 25.7 kmh (16 mph) Reverse: 11.5 (7.1 mph)
Tires
Front tires Ag: 10.00-16 (2WD), 13.6-28 (4WD)
Rear tires Ag: 18.4-38
Three-Point Hitch
Caterogy II/IIIN
Control type
Lift capacity (at ends) 2WD: 4,080 kg (8,996 lbs)
4WD: 4,898 kg (10,800 lbs)
Front Hitch
Caterogy II
Control type
Lift capacity (at ends) 1,630 kg (3,594 lbs)
2,960 kg (6,526 lbs)
PTO (Power take-off shaft)
Front PTO type Independent with hydraulic wet disc clutch
Front PTO spped 1,000 rpm
Rear PTO type Independent with hydraulic wet disc clutch
Rear PTO spped 540/1000 rpm
Hydraulic system
Hydraulic type Closed center constant pressure
Hydraulic capacity 2WD: 49.0 L (51.78 US. qts, 43.11 Imp. qts)
2WD: 52.0 L (54.95 US. qts, 45.75 Imp. qts)
Pressure 2,700 psi (186 bar)
Total flow 11.6 gpm (43.9 lpm)
