John Deere 401B

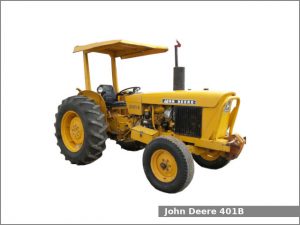

John Deere 401BThe John Deere 401B is a 2WD industrial tractor manufactured by John Deere in Dubuque, Iowa, USA from 1974 to 1982.

The JD 401B used one of two engines: a 3.6 L (219.0 cu·in) four-cylinder diesel engine or a 3.6 L (219.0 cu·in) four-cylinder gasoline engine and one of two transmissions.

The John Deere 401B is equipped with power steering, hydraulic wet disc brakes, open operator station or ROPS and 73.8 liters (19.5 US gal.; 16.2 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • John Deere. It is a 3.6 L, 3,589 cm2, (219.0 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 66.9 PS (49.2 kW; 66.0 HP) at 2,500 rpm of output power.
  • John Deere. It is a 3.6 L, 3,589 cm2, (219.0 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 102.0 mm (4.02 in) and the piston stroke is 110.0 mm (4.33 in). This engine produced 42.6 PS (31.3 kW; 42.0 HP) at 2,500 rpm of output power.

John Deere 401B Specifications

General Specifications
Model John Deere 401B
Length 4,850 mm (190.9 in)
Width 1,900 mm (74.8 in)
Height (ROPS) 2,180 mm (85.8 in)
Wheel base 2,010 mm (79.1 in)
Ground clearance 270 mm (10.6 in)
Weight 2,019 kg (4,451 lbs)
Loader: 2,848 kg (6,279 lbs)
Fuel tank capacity 73.8 liters (19.5 US gal.; 16.2 Imp. gal)
Battery
Cabin type Open operator station or ROPS
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.6 L, 3,589 cm2, (219.0 cu·in)
Bore and stroke 102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Horsepower 66.9 PS (49.2 kW; 66.0 HP) at 2,500 rpm
Torque 217.0 N·m (22.1 kg·m, 159.9 ft·lb) at 1,300 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 3.6 L, 3,589 cm2, (219.0 cu·in)
Bore and stroke 102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Horsepower 42.6 PS (31.3 kW; 42.0 HP) at 2,500 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Rear standard
Transmission model
Transmission type
Gears 8 forward and 4 reverse
Transmission model
Transmission type Power shuttle with hydraulic wet disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 25.3 kmh (15.7 mph) Reverse: 30.1 kmh (18.7 mph)
Tires
Front tires Industrial: 11L-15, 7.50/8.00-16
Rear tires Industrial: 14.9-24, 17.5L-24
Three-Point Hitch
Category Optional
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Optional
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Pressure 2350 psi (162 bar)
Total flow 13.0 gpm (49.2 lpm)
