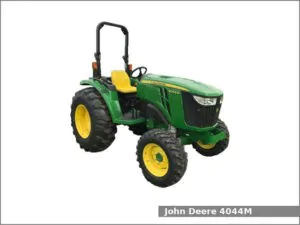

John Deere 4044M

John Deere 4044MThe John Deere 4044M is a 4WD compact utility tractor from the 4M series. This tractor has been manufactured by the John Deere in Augusta, Georgia, USA since 2014. The JD 4044M is equipped with a 2.2 L four-cylinder diesel engine and one of two transmissions: power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or hydrostatic transmission with infinite forward and reverse gears.

The John Deere 4044M compact utility tractor used the Yanmar 4TNV88 engine. It is a 2.2 L, 2,189 cm2, (133.6 cu·in) four-cylinder turbocharged diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 43.7 PS (32.1 kW; 43.0 HP) at 2,600 rpm of maximum output power.

The John Deere 4044M is equipped with power steering, hydraulic wet disc brakes, two-post folding ROPS and 49.2 liters (13.0 US gal.; 10.8 Imp. gal) fuel tank.

Following attachments are available for the JD 4044M compact utility tractor:

  • John Deere D170 loader
  • John Deere H180 loader
  • John Deere 400E loader
  • John Deere 485A backhoe

John Deere 4044M Specifications

General Specifications
Model John Deere 4044M
Length 3,310 mm (130.3 in)
Width
Height 2,540 mm (100 in)
Wheel base 1,850 mm (72.8 in)
Weight 1,710 kg (3,770 lbs)
Fuel tank capacity 49.2 liters (13 US gal.; 10.8 Imp. gal)
Battery 12V, CCA 770A
Cabin type Two-post folding ROPS
Engine
Engine model Yanmar 4TNV88
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,189 cm2, (133.6 cu·in)
Bore and stroke 88.0 mm X 90.0 mm (3.46 in X 3.54 in)
Horsepower 43.7 PS (32.1 kW; 43.0 HP) at 2,600 rpm
Starter Electric
Oil capacity: 5.4 L (5.7 US. qt, 4.8 Imp. qt.)
Coolant capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Mechanical rear
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: (0 mph)
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 32.8 kmh (20.4 mph) Reverse: (0 mph)
Tires
Front tires Ag: 8.00-16
Lawn/turf: 27×10.50-15
Rear tires Ag: 13.6-28
Lawn/turf: 44×18-20
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,420 kg (3,130 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 47.3 L (49.98 US. qt, 41.62 Imp. qt.)
Pressure 2,500 psi (172 bar)
Pump flow 10.2 gpm (38.6 lpm)
Steering flow 5.7 gpm (21.6 lpm)
Total flow 15.9 gpm (60.2 lpm)
