John Deere 4052R

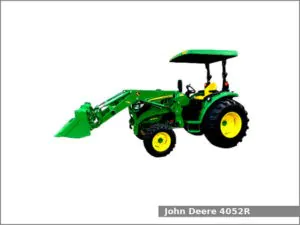

John Deere 4052RThe John Deere 4052R is a 4WD compact utility tractor from the 4M series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2014. The John Deere 4052R is equipped with a 2.1 L (127.5 cu·in) four-cylinder diesel engine and one of two transmissions: a power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or a hydrostatic transmission with infinite forward and reverse gears.

The John Deere 4052R compact utility tractor used the Yanmar 4TNV86 engine. It is a 2.1 L, 2,089 cm2, (127.5 cu·in) four-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 52.2 PS (38.4 kW; 51.5 HP) at 2,600 rpm of output power.

The JD 4052R is equipped with power steering, hydraulic wet disc brakes, two-post folding ROPS, or cab with air-conditioning (optional), and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank for ROPS version or 52.2 liters (13.8 US gal, 11.5 Imp. gal) for cab version.

Following attachments are available for the John Deere 4052R compact utility tractor:

  • John Deere D170 loader
  • John Deere H180 loader
  • John Deere 400E loader
  • John Deere 485A backhoe

John Deere 4052R Specifications

General Specifications
ModelJohn Deere 4052R
Length3,310 mm (130.3 in)
Width mm (0 in)
Height ROPS: 2,540 mm (100.0 in)
Cab: 2,470 mm (97.4 in)
Wheel base1,850 mm (72.8 in)
Ground clearance350 mm (13.8 in)
Weight1,710 kg (3,770 lbs)
Fuel tank capacity ROPS: 49.2 liters (13 US gal.; 10.8 Imp. gal)
Cab: 52.2 liters (13.8 US gal.; 11.5 Imp. gal)
Battery12V, CCA 770A
Cabin typeTwo-post folding ROPS or Cab with air-conditioning (optional)
Engine modelYanmar 4TNV86
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement2.1 L, 2,089 cm2, (127.5 cu·in)
Bore and stroke86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Horsepower52.2 PS (38.4 kW; 51.5 HP) at 2,600 rpm
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final drivePlanetary
Differential lockMechanical rear
Transmission modelPowrReverser
Transmission typePower shuttle with wet disc clutch
Gears12 forward and 12 reverse
Speed Forward: 29.9 kmh (18.6 mph)
Transmission modeleHydro
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 29.9 kmh (18.6 mph)
Front tiresAg: 8.00-16
Rear tiresAg: 13.6-28
Three-Point Hitch
Control typePosition control
Lift capacity (at ends)1,420 kg (3,130 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center
Pressure2500 psi (172.4 bar)
Pump flow10.2 gpm (38.6 lpm)
Steering flow5.7 gpm (21.6 lpm)
Total flow15.9 gpm (60.2 lpm)
