John Deere 4100

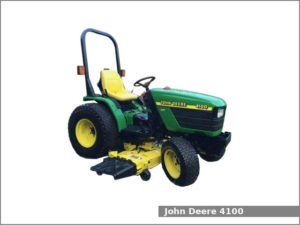

John Deere 4100The John Deere 4100 is a 4WD compact utility tractor from the 4000 series. This tractor was manufactured by the John Deere in Augusta, Georgia, USA from 1998 to 2001. The John Deere 4100 utility tractor is equipped with a 1.0 L three-cylinder diesel engine and one of two transmissions: partially synchronized transmission with 8 forward and 4 reverse gears or hydrostatic transmission with infinite (2-range) forward and reverse.

The JD 4100 compact utility tractor used the Yanmar 3TNE74 engine. It is a 1.0 L, 1,006 cm2, (61.4 cu·in) three-cylinder natural aspirated diesel engine with 74.0 mm (2.91 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. The compression ratio rating is 23.5:1. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 2,650 rpm of gross output power and 53.8 N·m (5.5 kg·m, 39.7 ft·lb) of torque.

The John Deere 4100 is equipped with power steering, differential wet disc brakes, two-post ROPS and 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank. The JD 4100 utility tractor could be equipped with the John Deere 410 loader.

John Deere 4100 Specifications

General Specifications
Model John Deere 4100
Length 2,610 mm (102.8 in)
Width 1,090 mm (42.9 in)
Narrow: 910 mm (36.0 in)
Height 2,000 mm (78.7 in)
Wheel base 1,470 mm (57.9 in)
Weight Gear: 688 kg (1,517 lbs)
Hydro: 709 kg (1,565 lbs)
Fuel tank capacity 22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Battery 12V, CCA 433A
Cabin type Two-post ROPS
Engine
Engine model Yanmar 3TNE74
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 1,006 cm2, (61.4 cu·in)
Bore and stroke 74.0 mm X 78.0 mm (2.91 in X 3.07 in)
Compression ratio 23.5:1
Horsepower 20.3 PS (14.9 kW; 20 HP) at 2,650 rpm
Torque 53.8 N·m (5.5 kg·m, 39.7 ft·lb)
Starter Electric
Oil capacity: 2.2 L (2.3 US. qt, 1.9 Imp. qt.)
Coolant capacity: 2.4 L (2.5 US. qt, 2.1 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Differential wet disc
Differential lock Mechanical
Transmission model
Transmission type Partially synchronized
Gears 8 forward and 4 reverse
Speed Forward: 17.7 kmh (11 mph) Reverse: 9.2 (5.7 mph)
Transmission oil capacity 8.7 L (2.3 US. gal, 1.9 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 17.1 kmh (10.6 mph) Reverse: 8.5 (5.3 mph)
Transmission oil capacity 12.5 L (3.3 US. gal, 2.7 Imp. gal.)
Tires
Front tires Ag: 5.00-12
Lawn/turf: 23×8.50-12
Industrial: 23×8.50-12
Rear tires Ag: 9.5-16, 8.00-16 (Narrow)
Lawn/turf: 315x75D-15
Industrial: 12.00×16.5
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at 610 mm/24 in) 420 kg (926 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO spped 1,000 rpm
Rear PTO type Gear: transmission; Hydro: independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2418 psi (166.7 bar)
Total flow 5.1 gpm (19.3 lpm)
