John Deere 4200

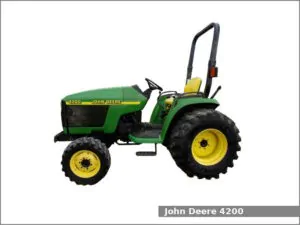

John Deere 4200The John Deere 4200 is a 2WD/4WD compact utility tractor from the 4000 Compact series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1998 to 2001. The John Deere 4200 is equipped with a 1.2 L three-cylinder diesel engine and one of two transmissions: partially synchronized (SyncShift) transmission with 9 forward and 3 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse gears.

The JD 4200 compact utility tractor used the Yanmar 3TNE78A engine. It is a 1.2 L, 1,204 cm2, (73.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 84.0 mm (3.31 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 26.7 PS (19.6 kW; 26.3 HP) of maximum output power.

The John Deere 4200 is equipped with power steering, differential wet disc brakes, two-post ROPS and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Following attachments are available for the JD 4200 compact utility tractor:

  • Mid-mount John Deere 60 in (1,520 mm) mower deck
  • Mid-mount John Deere 72 in (1,820 mm) mower deck
  • John Deere 420 loader
  • John Deere 47 backhoe

John Deere 4200 Specifications

General Specifications
Model John Deere 4200
Length 2,970 mm (116.9 in)
Width 2WD: 1,340 mm (53.0 in)
4WD: 1,270 mm (50.0 in)
Height 2WD fixed: 2,050 mm (81.0 in)
4WD fixed: 2,130 mm (83.9 in)
Folding: 2,200 mm (87.0 in)
Wheel base 2WD: 1,650 mm (65.0 in)
4WD: 1,720 mm (67.7 in)
Weight 1,100 kg (2,425 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post ROPS
Engine
Engine model Yanmar 3TNE78A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.2 L, 1,204 cm2, (73.5 cu·in)
Bore and stroke 78.0 mm X 84.0 mm (3.07 in X 3.31 in)
Compression ratio 18.0:1
Horsepower 26.7 PS (19.6 kW; 26.3 HP)
Starter Electric
Oil type SAE 10W-30, 5W-30
Oil capacity: 3.8 L (4 US. qt, 3.3 Imp. qt.)
Coolant capacity: 5.3 L (5.6 US. qt, 4.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential wet disc
Differential lock Mechanical
Transmission model SyncShift
Transmission type Partially synchronized
Gears 9 forward and 3 reverse
Speed Forward: 21.2 kmh (13.2 mph) Reverse: 10.5 (6.5 mph)
Transmission oil capacity 23.8 L (6.3 US. gal, 5.2 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 21.1 kmh (13.1 mph) Reverse: 21.1 (13.1 mph)
Transmission oil capacity 25.7 L (6.8 US. gal, 5.7 Imp. gal.)
Tires
Front tires Ag: 4.00-15, 5.00-15 (2WD), 7.00-14 (4WD)
Rear tires Ag: 12.4-16 (2WD), 12.4-24 (4WD)
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 997 kg (2,198 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,100 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2125 psi (146.5 bar)
Valves 2
Pump flow 7.3 gpm (27.6 lpm)
Steering flow 5.0 gpm (18.9 lpm)
Total flow 12.3 gpm (46.6 lpm)
