John Deere 4300

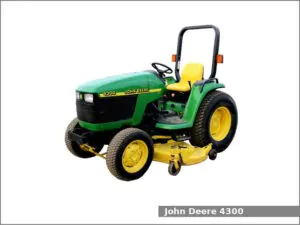

John Deere 4300The John Deere 4300 is a 2WD or 4WD compact utility tractor from the 4000 Compact series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1998 to 2003. The John Deere 4300 is equipped with a 1.5 L three-cylinder diesel engine and one of three transmissions: partially synchronized (SyncShift) transmission with 9 forward and 3 reverse gears, partially synchronized (SyncReverser) transmission with 12 forward and 12 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse gears.

The John Deere 4300 compact utility tractor used the Yanmar 3TNE84 engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 32.6 PS (24.0 kW; 32.2 HP) of output power.

The John Deere 4300 is equipped with power steering, differential wet disc brakes, two-post ROPS and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere 4300 compact utility tractor:

  • Mid-mount John Deere 60 in (1,520 mm) mower deck
  • Mid-mount John Deere 72 in (1,820 mm) mower deck
  • John Deere 420 loader
  • John Deere 430 loader
  • John Deere 47 backhoe
  • John Deere 48 backhoe

John Deere 4300 Specifications

General Specifications
Model John Deere 4300
Length 2,970 mm (116.9 in)
Width 1,270 mm (50 in)
Height Fixed: 2,130 mm (83.9 in)
Folding: 2,280 mm (90.0 in)
Wheel base 1,720 mm (67.7 in)
Weight 1,360 kg (3,000 lbs)
Fuel tank capacity 37.9 liters (10.0 US gal.; 8.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post ROPS
Engine
Engine model Yanmar 3TNE84
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,496 cm2, (91.3 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 18.0:1
Horsepower 32.6 PS (24.0 kW; 32.2 HP)
Starter Electric
Oil type SAE 10W-30, 5W-30
Oil capacity: 4.3 L (4.5 US. qt, 3.8 Imp. qt.)
Coolant capacity: 5.8 L (6.1 US. qt, 5.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential wet disc
Differential lock Mechanical
Transmission model SyncShift
Transmission type Partially synchronized
Gears 9 forward and 3 reverse
Speed Forward: 25.1 kmh (15.6 mph) Reverse: 12.4 (7.7 mph)
Transmission oil capacity 23.8 L (6.3 US. gal, 5.2 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 24.9 kmh (15.5 mph) Reverse: 24.9 (15.5 mph)
Transmission oil capacity 25.7 L (6.8 US. gal, 5.7 Imp. gal.)
Transmission model SyncReverser
Transmission type Partially synchronized
Gears 12 forward and 12 reverse
Speed Forward: 25.1 kmh (15.6 mph) Reverse: 25.1 (15.6 mph)
Transmission oil capacity 23.8 L (6.3 US. gal, 5.2 Imp. gal.)
Tires
Front tires Ag: 5-15 (2WD), 7-14 (4WD)
Rear tires Ag: 11.2-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity 997 kg (2,198 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,100 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2500 psi (172.4 bar)
Valves 2
Pump flow 8.3 gpm (31.4 lpm)
Steering flow 5.0 gpm (18.9 lpm)
Total flow 13.3 gpm (50.3 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
