John Deere 4310

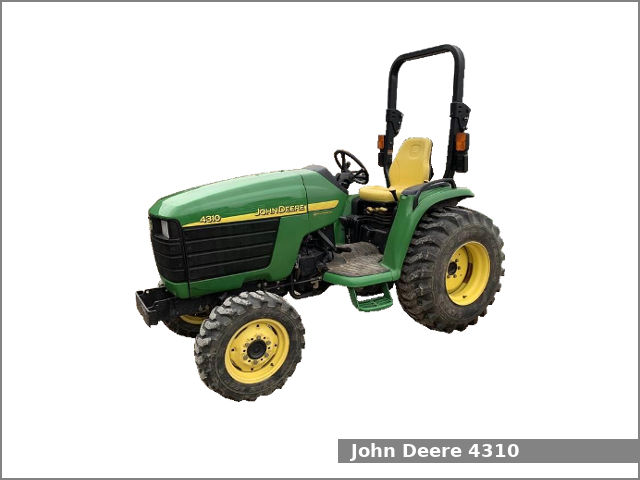

John Deere 4310The John Deere 4310 is a 2WD or 4WD compact utility tractor from the 4000 Ten Compact series. This tractor was manufactured by the John Deere in Augusta, Georgia, USA from 2002 to 2004. The John Deere 4310 tractor is equipped with a 1.5 L three-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with 9 forward and 3 reverse gears, a power shuttle transmission with 12 forward and 12 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse.

The JD 4310 compact utility tractor used the Yanmar 3TNE84 engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 31.7 PS (23.3 kW; 31.2 HP) at 2,600 rpm of maximum output power.

The John Deere 4310 is equipped with power steering, wet disc brakes, two-post ROPS or foldable ROPS (optional) and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere 4310 compact utility tractor:

  • Mid-mount John Deere 60 in (1,520 mm) mower deck with 3-blades
  • Mid-mount John Deere 72 in (1,820 mm) mower deck with 3-blades
  • John Deere 420 loader
  • John Deere 430 loader
  • John Deere 48 backhoe

John Deere 4310 Specifications

General Specifications
Model John Deere 4310
Length 2,970 mm (116.9 in)
Width 1,270 mm (50 in)
Height 2,090 mm (82.3 in)
Wheel base 1,720 mm (67.7 in)
Weight 2WD: 1,180 kg (2,601 lbs)
4WD: 1,315 kg (2,900 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post ROPS or foldable ROPS (optional).
Engine
Engine model Yanmar 3TNE84
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,496 cm2, (91.3 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 18.5:1
Horsepower 31.7 PS (23.3 kW; 31.2 HP) at 2,600 rpm
Starter Electric
Oil capacity: 4.3 L (4.5 US. qt, 3.8 Imp. qt.)
Coolant capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical
Front axle 4.4 L (4.65 US qts, 3.87 Imp. qts)
Transmission model SyncShift
Transmission type Partially synchronized
Gears 9 forward and 3 reverse
Speed Forward: 24.0 kmh (14.9 mph) Reverse: 12.0 (7.5 mph)
Transmission oil capacity 23.8 L (6.3 US. gal, 5.2 Imp. gal.)
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 28.2 kmh (17.5 mph) Reverse: 28.2 (17.5 mph)
Transmission oil capacity 25.7 L (6.8 US. gal, 5.7 Imp. gal.)
Transmission model ePowrReverser
Transmission type Power shuttle
Gears 12 forward and 12 reverse
Speed Forward: 24.1 kmh (15 mph) Reverse: 24.1 (15 mph)
Transmission oil capacity 23.8 L (6.3 US. gal, 5.2 Imp. gal.)
Tires
Front tires Ag: 5.00-15 (2WD), 7.00-14 (4WD)
Rear tires Ag: 11.2-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 997 kg (2,198 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,100 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,500 psi (172 bar)
Pump flow 8.6 gpm (32.6 lpm)
Steering flow 5.3 gpm (20.1 lpm)
Total flow 13.9 gpm (52.6 lpm)
