John Deere 4400

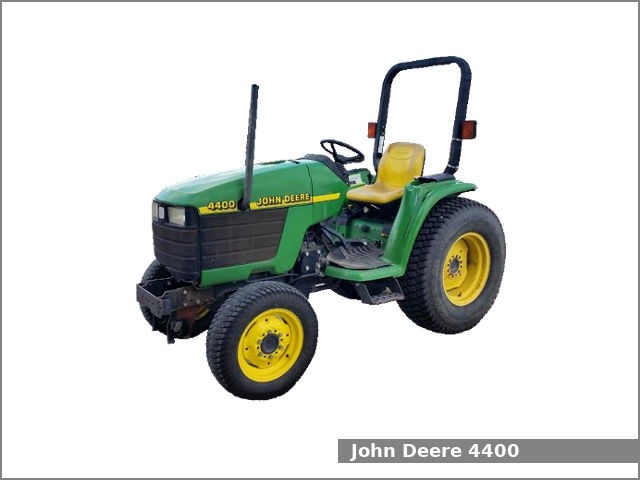

John Deere 4400The John Deere 4400 is a 4WD compact utility tractor from the 4000 Compact series. This tractor was manufactured by the John Deere in Augusta, Georgia, USA from 1998 to 2001. The John Deere 4400 tractor is equipped with a 1.6 L three-cylinder diesel engine and one of two transmissions: partially synchronized transmission with 12 forward and 12 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse.

The John Deere 4400 compact utility tractor used the Yanmar 3TNE88 engine. It is a 1.6 L, 1624 cm2, (99.1 cu·in) three-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 36.2 PS (26.6 kW; 35.7 HP) at 2,700 rpm of maximum output power.

The John Deere 4400 is equipped with power steering, differential wet disc brakes, open operator station with two-post ROPS and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere 4400 compact utility tractor:

  • Mid-mount John Deere 60 in (1,520 mm) mower deck with 3-blades
  • Mid-mount John Deere 72 in (1,820 mm) mower deck with 3-blades
  • John Deere 420 loader
  • John Deere 430 loader
  • John Deere 47 backhoe
  • John Deere 48 backhoe

John Deere 4400 Specifications

General Specifications
Model John Deere 4400
Length 2,970 mm (116.9 in)
Width 1,270 mm (50 in)
Height 2,130 mm (83.9 in)
Wheel base 1,720 mm (67.7 in)
Weight 1,315 kg (2,899 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNE88
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,624 cm2, (99.1 cu·in)
Bore and stroke 88.0 mm X 90.0 mm (3.46 in X 3.54 in)
Compression ratio 18.0:1
Horsepower 36.2 PS (26.6 kW; 35.7 HP) at 2,700 rpm
Starter Electric
Oil capacity: 4.3 L (4.5 US. qt, 3.8 Imp. qt.)
Coolant capacity: 5.8 L (6.1 US. qt, 5.1 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Differential wet disc
Differential lock Mechanical
Transmission model SyncReverser
Transmission type Partially synchronized
Gears 12 forward and 12 reverse
Speed Forward: 25.1 kmh (15.6 mph) Reverse: 25.1 (15.6 mph)
Transmission oil capacity 23.8 L (6.3 US. gal, 5.2 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 24.9 kmh (15.5 mph) Reverse: 24.9 (15.5 mph)
Transmission oil capacity 25.7 L (6.8 US. gal, 5.7 Imp. gal.)
Tires
Front tires Ag: 7.00×14
Rear tires Ag: 11.2×24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 997 kg (2,198 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,100 rpm
Rear PTO type Independent with wet disc clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,500 psi (172 bar)
Valves 2
Pump flow 8.3 gpm (31.4 lpm)
Steering flow 5.0 gpm (18.9 lpm)
Total flow 12.3 gpm (46.6 lpm)
