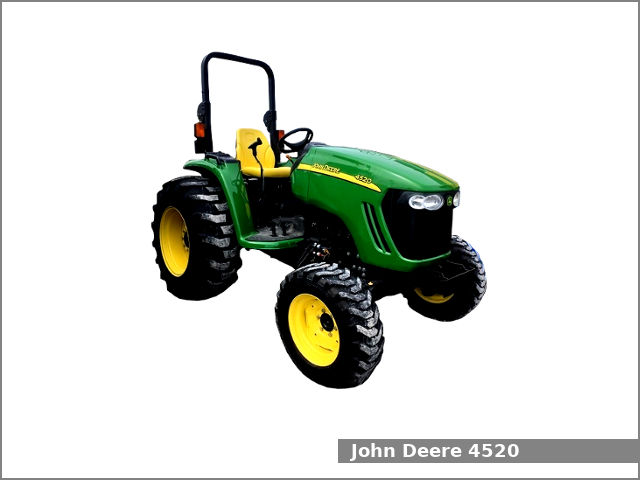

John Deere 4520 (2005-2014)The John Deere 4520 is a 4WD compact utility tractor from the 4000 series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2005 to 2014. The JD 4520 is equipped with 2.4 L four-cylinder diesel engine and one of two transmissions: power shuttle transmission with 12 forward and 12 reverse gears or hydrostatic transmission with infinite 3-range forward and reverse gears.

The John Deere 4520 compact utility tractor used the John Deere 4042T engine. It is a 2.4 L, 2,440 cm2, (148.9 cu·in) four-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 105.0 mm (4.13 in) of the piston stroke. This engine produced 53.9 PS (39.6 kW; 53.0 HP) at 2,400 rpm of output power (2005-2008) and 60.8 PS (44.7 KW; 60.0 HP) at 2,400 rpm (2009-2014).

The John Deere 4520 is equipped with hydrostatic power steering, wet disc brakes, two-post ROPS or Cab with heat and A/C (optional) and 54.9 liters (14.5 US gal, 12.1 Imp. gal) fuel tank for ROPS version and 52.2 liters (13.8 US gal, 11.5 Imp. gal) for Cab version.

Following attachments are available for the JD 4520 compact utility tractor:

  • John Deere 400X loader
  • John Deere 400CX (MSL) loader

John Deere 4520 Specifications

General Specifications
Model John Deere 4520
Length 3,250 mm (128 in)
Width 1,660 mm (65.4 in)
Height ROPS: 2,460 mm (96.9 in)
Cab: 2,340 mm (92.4 in)
Wheel base 1,810 mm (71.3 in)
Weight ROPS: 1,750 kg (3,860 lbs)
Cab: 1,970 kg (4,345 lbs)
Fuel tank capacity ROPS: 54.9 liters (14.5 US gal, 12.1 Imp. gal)
Cab: 52.2 liters (13.8 US gal, 11.5 Imp. gal)
Battery 12V, CCA: 770A
Cabin type Two-post ROPS or Cab with heat and A/C (optional)
Engine
Engine model John Deere 4042T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,440 cm2, (148.9 cu·in)
Bore and stroke 86.0 mm X 105.0 mm (3.39 in X 4.13 in)
Compression ratio 2005-2008: 20.5:1
2009-2014: 20.0:1
Horsepower 2005-2008: 53.9 PS (39.6 kW; 53.1 HP) at 2,400 rpm
2009-2014: 60.8 PS (44.7 KW; 60.0 HP) at 2,400 rpm
Torque 2005-2008: 191.2 N·m (19.5 kg·m, 140.9 ft·lb) at 1,440 rpm
2009-2014: 183.1 N·m (18.68 kg·m; 135.1 ft·lb) at 1,440 rpm
Starter Electric
Oil capacity: 7.5 L (7.9 US. qt, 6.6 Imp. qt.)
Coolant capacity: ROPS: 6.1 L (6.4 US. qt, 5.4 Imp. qt.)
Cab: 8.3 L (8.77 US. qt, 7.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model PowrReverser
Transmission type Power shuttle
Gears 12 forward and 12 reverse
Speed Forward: 27.8 kmh (17.3 mph) Reverse:
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 27.2 kmh (16.9 mph) Reverse:
Transmission oil capacity 36.3 L (9.6 US. gal, 8 Imp. gal.)
Tires
Front tires Ag: 8.00-16
Lawn/turf: 27×10.5-15, 27x12LL-15
Industrial: 10.00-16.5
Rear tires Ag: 13.6-28
Lawn/turf: 44×18.00-20, 22.5LL-16.1
Industrial: 17.5L-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 1,420 kg (3,130 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent (option)
Middle PTO speed 2,100 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
After 2008: 540e (optional)
Hydraulic system
Hydraulic type Open center
Pressure 2,500 psi (172.4 bar)
Valves 0 to 5
Pump flow 12.0 gpm (45.4 lpm)
Steering flow 5.1 gpm (19.3 lpm)
Total flow 17.1 gpm (64.7 lpm)
