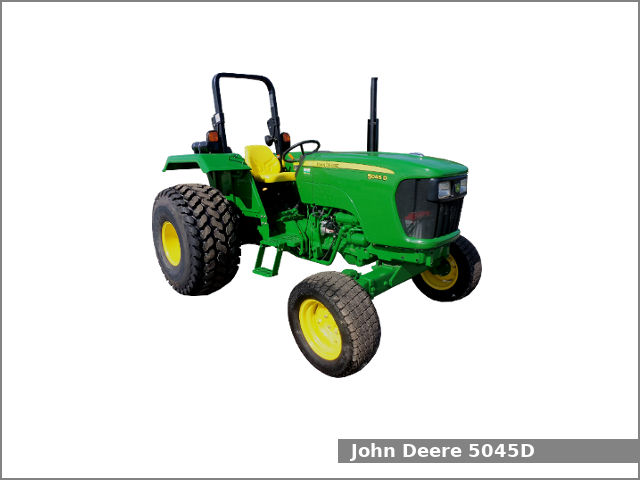

The John Deere 5045D is a 2WD or 4WD utility tractor from the 5D series. This tractor has been manufactured by John Deere in Pune, Maharashtra, India since 2012. The John Deere 5045D is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and a collar shift transmission with 8 forward and 4 reverse gears.
The John Deere 5045D utility tractor used the John Deere 3029D engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 18.5:1. This engine produced 45.7 PS (33.6 kW; 45.0 HP) at 2,300 rpm of output power.
The JD 5045D is equipped with power steering, mechanical wet disc brakes, open operator station or ROPS (optional), and 60.0 liters (15.9 US gal.; 13.2 Imp. gal) fuel tank.
John Deere 5045D Specifications
General Specifications | |
Model | John Deere 5045D |
Length | 3,350 mm (131.9 in) |
Width | 1,770 mm (69.7 in) |
Height | 2,210 mm (87 in) |
Wheel base | 1,950 mm (76.8 in) |
Ground clearance |
2WD: 450 mm (17.7 in) 4WD: 360 mm (14.4 in) |
Weight |
2WD: 1,825 kg (4,025 lbs) 4WD: 1,975 kg (4,355 lbs) |
Fuel tank capacity | 60.0 liters (15.9 US gal.; 13.2 Imp. gal) |
Battery | 12V, 88Ah |
Cabin type | Open operator station or ROPS (optional) |
Engine | |
Engine model | John Deere 3029D |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 3 |
Fuel type | Diesel |
Displacement | 2.9 L, 2,933 cm2, (179.0 cu·in) |
Bore and stroke | 106.0 mm X 110.0 mm (4.17 in X 4.33 in) |
Compression ratio | 18.5:1 |
Horsepower | 45.7 PS (33.6 kW; 45.0 HP) at 2,300 rpm |
Torque | 148.0 N·m (15.1 kg·m, 109.1 ft·lb) at 1,600 rpm |
Starter | Electric |
Oil capacity: | 8.5 L (9 US. qt, 7.5 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Power |
Brakes | Mechanical wet disc |
Transmission model | |
Transmission type | Collar shift |
Gears | 8 forward and 4 reverse |
Speed | Forward: 30.9 kmh (19.2 mph) Reverse: 15.3 (9.5 mph) |
Transmission oil capacity | 37.0 L (9.8 US. gal, 8.1 Imp. gal.) |
Tires | |
Front tires | Ag: 6.0×16, 8.0×18 |
Rear tires | Ag: 14.9×28, 13.6×28 |
Three-Point Hitch | |
Caterogy | II |
Control type | – |
Lift capacity (at ends) | 1,400 kg (3,087 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Transmission or live (option) |
Rear PTO speed | 540 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Hydraulic capacity | 37.0 L (39.1 US. qt, 32.56 Imp. qt.) |
Pump flow | 6.6 gpm (25 lpm) |
