John Deere 5045E (2015-)

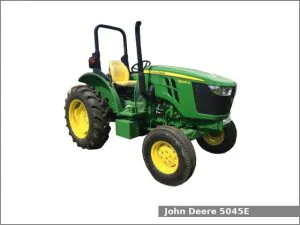

John Deere 5045E (2015-)The John Deere 5045E is a 2WD or 4WD utility tractor from the 5E Series series. This generation has been manufactured by John Deere in Pune, Maharashtra, India from 2015. The John Deere 5045E is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and a partially synchronized with 9 forward and 3 reverse gears.

The John Deere 5045E utility tractor used the John Deere PowerTech 3029T engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.9:1. This engine produced 50.7 PS (37.3 kW; 50 HP) at 2,400 rpm of output power.

The JD 5045E is equipped with power steering, hydraulic wet disc brakes, folding 2-post ROPS, and 68.1 liters (18 US gal.; 15 Imp. gal) fuel tank.

Following attachments are available for JD 2025R compact utility tractor:

  • John Deere 512 loader
  • John Deere H240 MSL loader
  • John Deere 520M loader

John Deere 5045E Specifications

General Specifications
Model John Deere 5045E
Length 3,500 mm (137.8 in)
Width 1,450 mm (57.1 in)
Height ROPS: 2,450 mm (96.5 in)
Wheel base 2,040 mm (80.3 in)
Ground clearance 2WD: 470 mm (18.5 in)
4WD: 340 mm (13.4 in)
Weight 2WD: 2,000 kg (4,410 lbs)
4WD: 2,450 kg (5,400 lbs)
Fuel tank capacity 68.1 liters (18 US gal.; 15 Imp. gal)
Battery 12V, CCA 623A, 80Ah
Cabin type Folding 2-post ROPS
Engine
Engine model John Deere PowerTech 3029T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 16.9:1
Horsepower 50.7 PS (37.3 kW; 50.0 HP) at 2,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model Top-Shaft Synchronized (TSS)
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 26.7 kmh (16.6 mph) Reverse: 21.2 kmh (13.2 mph)
Tires
Front tires Ag: 7.5-16 (2WD), 9.5-24 (4WD)
Rear tires Ag: 13.6-28
Three-Point Hitch
Category II
Control type Position and top-link draft control
Lift capacity (at ends) 1,800 kg (3,970 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 or 2
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
