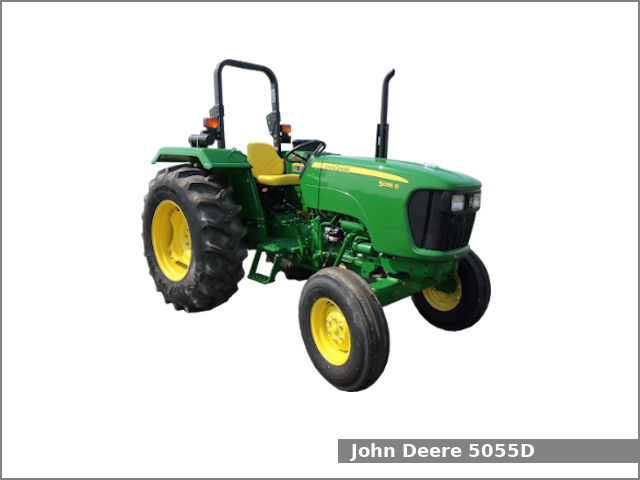

John Deere 5055D

John Deere 5055DThe John Deere 5055D is a 2WD utility tractor from the 5D series. This tractor was manufactured by John Deere in Pune, Maharashtra, India from 2008 to 2014. The John Deere 5055D is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and a partially synchronized transmission with 8 forward and 4 reverse gears and dry disc clutch.

The JD 5055D utility tractor used the John Deere PowerTech 3029 engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 2,300 rpm of output power.

The John Deere 5055D is equipped with hydrostatic power steering, mechanical wet disc brakes, two-post foldable ROPS and 60.6 liters (16.0 US gal.; 13.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere 5055D utility tractor:

  • John Deere 512 loader
  • John Deere 553 loader

John Deere 5055D Specifications

General Specifications
Model John Deere 5055D
Length 3,400 mm (133.9 in)
Width (axle flange) 1,450 mm (57.1 in)
Height (ROPS) 2,400 mm (94.5 in)
Wheel base 1,950 mm (76.8 in)
Ground clearance (front axle) 470 mm (18.5 in)
Weight (operating) 2,115 kg (4,663 lbs)
Fuel tank capacity 60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery 12V, CCA 623A
Cabin type Two-post foldable ROPS
Engine model John Deere PowerTech 3029
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 55.8 PS (41.0 kW; 55.0 HP) at 2,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Mechanical wet disc
Final drive Planetary
Differential lock Rear diff lock (standard)
Transmission model SyncReverser
Transmission type Partially synchronized with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 9.9 kmh (6.2 mph)
Front tires Ag: 7.5-16
Lawn/turf: 27/12LL-15
Industrial: 11L-15
Rear tires Ag: 14.9-28, 16.9-28
Lawn/turf: 21.5L-16.1
Industrial: 16.9-24
Three-Point Hitch
Category II
Control type Position and top-link draft control
Lift capacity (at 610 mm/24 in) 1,275 kg (2,810 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2828 psi (195 bar)
Valves Rear: 1 or 2
Mid: 2 (optional)
Pump flow 10.9 gpm (41.3 lpm)
Steering flow 6.5 gpm (24.6 lpm)
Total flow 17.4 gpm (65.9 lpm)
