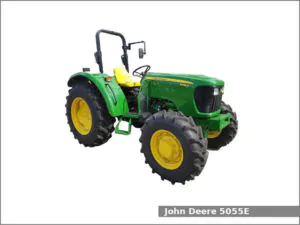

John Deere 5055E (2008-2012)

John Deere 5055E (2008-2012)The John Deere 5055E is a 4WD utility tractor from the 5E series. This tractor has been manufactured by John Deere in Pune, Maharashtra, India since 2008. This first version was manucatured from 2008 to 2012. The JD 5055E is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and a partially synchronized transmission with 9 forward and 3 reverse gears.

The JD 5055E utility tractor used the John Deere PowerTech 3029H engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 2,400 rpm of output power and 215.1 N·m (21.9 kg·m, 158.5 ft·lb) at 1,700 rpm of torque.

The John Deere 5055E is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS, and 68.1 liters (18 US gal.; 15 Imp. gal) fuel tank. This utility tractor could be equipped with John Deere 553 loader.

John Deere 5055E Specifications

General Specifications
Model John Deere 5055E
Length 3,500 mm (137.8 in)
Width 1,450 mm (57.1 in)
Height (ROPS) 2,400 mm (94.5 in)
Wheel base 2,040 mm (80.3 in)
Ground clearance 340 mm (13.4 in)
Weight
Fuel tank capacity 68.1 liters (18 US gal.; 15 Imp. gal)
Battery 12V, CCA 623A
Cabin type Two-post foldable ROPS
Engine
Engine model John Deere PowerTech 3029H
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 55.8 PS (41.0 kW; 55 HP) at 2,400 rpm
Torque 215.1 N·m (21.9 kg·m, 158.5 ft·lb) at 1,700 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Rear standard
Transmission model SyncShuttle
Transmission type Partially synchronized
Gears 9 forward and 3 reverse
Speed Forward: 25.8 kmh (16 mph) Reverse: 20.0 kmh (12.4 mph)
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Tires
Front tires Ag: 9.5-24
Lawn/turf: 9.5-16
Industrial: 12.5/80-18
Rear tires Ag: 14.9-28
Lawn/turf: 21.5L-16.1
Industrial: 16.9-24
Three-Point Hitch
Category II
Control type Position and top-link draft control
Lift capacity (at 610 mm / 24 in) 1,447 kg (3,190 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Pressure 2828 psi (195 bar)
Valves Rear: 1 or 2
Mid: 2
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
