John Deere 5065E (2008-2012)

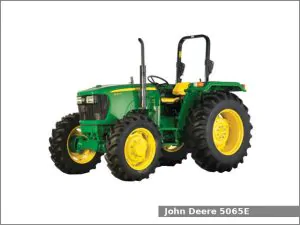

John Deere 5065E (2008-2012)The John Deere 5065E is a 2WD or 4WD utility tractor from the 5E series. This first generation was manufactured by John Deere in Pune, Maharashtra, India from 2008 to 2012. The John Deere 5065E is equipped with a 3.0 L (182.6 cu·in) three-cylinder diesel engine and one of two transmissions: the SyncReverser transmission with 9 forward and 3 reverse gears or the SyncShuttle transmission with 9 forward and 3 reverse gears.

The JD 5065E utility tractor used the John Deere PowerTech 3029H engine. It is a 3.0 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 66 PS (48.5 kW; 65.0 HP) at 2,400 rpm of output power and 240.0 N·m (24.5 kg·m, 176.9 ft·lb) at 1,700 rpm fo torque.

The John Deere 5065E is equipped with hydrostatic power steering, hydraulic wet disc brakes, folding 2-post ROPS, and 68.0 liters (18 US gal.; 15 Imp. gal) fuel tank.

Following attachments are available for the John Deere 5065E utility tractor:

  • John Deere 512 loader
  • John Deere 553 loader

John Deere 5065E Specifications

General Specifications
Model John Deere 5065E
Length 3,500 mm (137.8 in)
Width 1,450 mm (57.1 in)
Height ROPS: 2,450 mm (96.5 in)
Wheel base 2,040 mm (80.3 in)
Ground clearance 2WD: 470 mm (18.5 in)
4WD: 340 mm (13.4 in)
Weight (shipping) 2WD: 2,100 kg (4,630 lbs)
4WD: 2,300 kg (5,071 lbs)
Fuel tank capacity 68.0 liters (18 US gal.; 15 Imp. gal)
Battery 12V, CCA 623A
Cabin type Folding 2-post ROPS.
Optional canopy or deluxe canopy with lights and insulation.
Engine
Engine model John Deere PowerTech 3029H
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.0 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 66 PS (48.5 kW; 65 HP) at 2,400 rpm
Torque 240.0 N·m (24.5 kg·m, 176.9 ft·lb) at 1,700 rpm
Starter Electric
Oil type SAE 10W-30, 10W-40
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Rear diff lock standard
Transmission model SyncReverser
Transmission type
Gears 9 forward and 3 reverse
Speed Forward: 28.0 kmh (17.4 mph) Reverse: 21.7 kmh (13.5 mph)
Transmission oil capacity 38.0 L (10 US. gal, 8.4 Imp. gal.)
Transmission model SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 28.0 kmh (17.4 mph) Reverse: 21.7 kmh (13.5 mph)
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Tires
Front tires Ag: 7.5-16 (2WD), 9.5-24 (4WD)
Lawn/turf: 27/12LL-15 (2WD), 9.5-16 (4WD)
Rear tires Ag: 16.9-27 (2WD), 16.9-28 (4WD)
Lawn/turf: 21.5L-16.1
Three-Point Hitch
Category II
Control type Position and top-link draft control
Lift capacity (at 610 mm / 24 in) 1450 kg (3,200 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Pressure 2830 psi (195.1 bar)
Valves Rear: 1 or 2,
Mid: 2 (optioanl)
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
