John Deere 5075M (2015-2022)

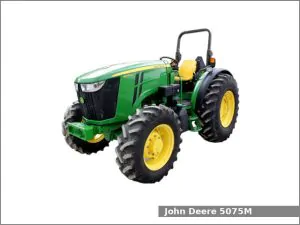

John Deere 5075M The John Deere 5075M is a 2WD or 4WD utility tractor from the 5M series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2008 to 2022. This third generation was manufactured from 2015 to 2022. The JD 5075M is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of three transmissions: a partially synchronized transmission with 12 forward and 4 reverse gears, a power shuttle transmission with 16 forward and 16 reverse gears or a two-speed power shift transmission with 32 forward and 16 reverse gears.

The John Deere 5075M utility tractor used the John Deere 3029 engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 76 PS (55.9 kW; 75 HP) at 2,100 rpm of output power.

The JD 5075M is equipped with power steering, hydraulic wet disc brakes, Isolated open operator station with foldable two-post ROPS, premium open station (optional), standard and premium cabs and 113.6 liters (30 US gal.; 25 Imp. gal) fuel tank for ROPS or 136.3 liters (36 US gal, 30 Imp. gal) for the cab version.

Following attachments are available for the John Deere 5075M utility tractor:

  • John Deere H260 NSL loader
  • John Deere H260 MSL loader
  • John Deere H310 NSL loader

John Deere 5075M Specifications

General Specifications
Model John Deere 5075M
Length 4,030 mm (158.7 in)
Width
Height ROPS: 2,460 mm (96.9 in)
Cab: 2,540 mm (100 in)
Wheel base 2,300 mm (90.6 in)
Ground clearance (front axle) 2WD: 470 mm (18.5 in)
4WD: 400 mm (15.7 in)
Weight (shipping) 2WD ROPS: 3,220 kg (7,099 lbs)
2WD Cab: 3,628 kg (7,998 lbs)
4WD ROPS: 3,447 kg (7,600 lbs)
4WD Cab: 3,855 kg (8,500 lbs)
Fuel tank capacity ROPS: 113.6 liters (30 US gal.; 25 Imp. gal)
Cab: 136.3 liters (36 US gal, 30 Imp. gal)
Battery 12V, CCA 950A
Cabin type Isolated open operator station with foldable two-post ROPS.
Premium open station (optional)
Standard and premium cabs
Engine
Engine model John Deere 3029
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 76 PS (55.9 kW; 75 HP) at 2,100 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: ROPS: 13.0 L (13.7 US.qts, 11.4 Imp.qts)
Cab: 15.0 L (15.8 US.qts, 13.2 Imp. qts)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Electro-hydraulic
Transmission model SyncShuttle
Transmission type Partially synchronized
Gears 12 forward and 4 reverse
Speed Forward: 27.4 kmh (17 mph) Reverse: 20.0 kmh (12.4 mph)
Transmission model PowrReverser
Transmission type Power shuttle
Gears 16 forward and 16 reverse
Transmission model PowrReverser Plus
Transmission type Two-speed power shift
Gears 32 forward and 16 reverse
Tires
Front tires Ag: 12.4R24 (2WD), 320/85R24 (4WD)
Rear tires Ag: 18.4R30 (2WD), 460/85R30 (4WD)
Three-Point Hitch
Category II/I
Control type Lower-link draft sensing
Lift capacity (at ends) 2,175 kg (4,795 lbs)
Optional: 2,692 kg (5,935 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic wet disc clutch
Rear PTO speed 540/540E or 540/540E/1000 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2900 psi (199.9 bar)
Pump flow 18.4 gpm (69.7 lpm)
Steering flow 6.3 gpm (23.8 lpm)
SCV flow 14.6 gpm (55.3 lpm)
