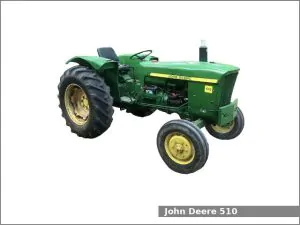

John Deere 510 is a 2WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1966 to 1967. The John Deere 510 is equipped with a 2.5 L (151.9 cu·in) three-cylinder diesel engine and a gear type transmission with 10 forward and 3 reverse gears.
The JD 510 utility tractor used the John Deere engine. It is a 2.5 L, 2,489 cm2 , (151.9 cu·in) three-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.7:1. This engine produced 40.1 PS (29.5 kW; 39.6 HP) at 2,400 rpm of output power.
John Deere 510 Specifications
General Specifications
Model
John Deere 510
Length
3,400 mm (133.9 in)
Width
1,790 mm (70.5 in)
Height (steering wheel)
1,670 mm (65.7 in)
Wheel base
–
Ground clearance
440 mm (17.3 in)
Weight
2,060 kg (4,542 lbs)
Fuel tank capacity
70.0 liters (18.5 US gal.; 15.4 Imp. gal)
Battery
–
Cabin type
Open operator station
Engine
Engine model
John Deere
Engine type
Four-stroke, liquid-cooled, inline
Cylinders
3
Fuel type
Diesel
Displacement
2.5 L, 2,489 cm2 , (151.9 cu·in)
Bore and stroke
98.0 mm X 110.0 mm (3.86 in X 4.33 in)
Compression ratio
16.7:1
Horsepower
40.1 PS (29.5 kW; 39.6 HP) at 2,400 rpm
Torque
137.0 N·m (14 kg·m, 101 ft·lb) at 1,300 rpm
Starter
Electric
Oil capacity:
5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity:
10.9 L (11.5 US. qt, 9.6 Imp. qt.)
Transmission and chassis
Chassis
4×2 2WD
Steering type
–
Brakes
–
Transmission model
–
Transmission type
Gear type
Gears
10 forward and 3 reverse
Speed
Forward: 18.7 kmh (11.6 mph) Reverse: 7.7 kmh (4.8 mph)
Transmission oil capacity
31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Tires
Front tires
Ag : 6.50-16
Rear tires
Ag : 12.4/11-32, 14.9/13-28
Three-Point Hitch
Category
II/I
Control type
–
Lift capacity (at ends)
–
PTO (Power take-off shaft)
Rear PTO type
Live with two stage clutch
Rear PTO speed
540/1000 rpm
