John Deere 5105

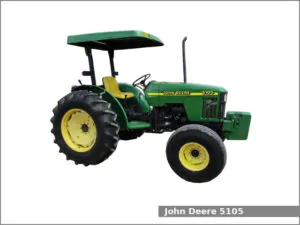

John Deere 5105The John Deere 5105 is a 2WD or 4WD utility tractor from the 5000 Advantage series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2000 to 2007. The John Deere 5105 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and a partially synchronized transmission with 8 forward and 4 reverse gears and dry disc clutch.

The JD 5105 utility tractor used the John Deere 3029D engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.4:1. This engine produced 46.2 PS (34.0 kW; 45.6 HP) at 2,300 rpm of output power or 50.7 PS (37.3 KW; 50.0 HP) at 2,300 rpm (after SN 512000).

The John Deere 5105 is equipped with hydrostatic power steering, differential mechanical wet disc brakes, open operator station with two-post ROPS, and 85.0 liters (22.5 US gal.; 18.7 Imp. gal) fuel tank. This tractor could be equipped with the John Deere 521 loader.

John Deere 5105 Specifications

General Specifications
Model John Deere 5105
Length 2WD: 2,760 mm (108.7 in)
4WD: 3,260 mm (128.4 in)
Width 1,750 mm (68.9 in)
Height (ROPS) 2,290 mm (90.2 in)
Wheel base 1,950 mm (76.8 in)
Ground clearance 420 mm (16.5 in)
Weight (operating) 2WD: 1,870 kg (4,125 lbs)
4WD: 2,040 kg (4,500 lbs)
Fuel tank capacity 85.0 liters (22.5 US gal.; 18.7 Imp. gal)
Battery 12V, Group 28H, CCA 700A (early) or 950A (late)
Cabin type Open operator station with two-post ROPS
Engine
Engine model John Deere 3029D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.4:1
Horsepower 46.2 PS (34.0 kW; 45.6 HP) at 2,300 rpm
50.7 PS (37.3 KW; 50.0 HP) at 2,300 rpm
Starter Electric
Oil capacity: 7.5 L (7.9 US. qt, 6.6 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential mechanical wet disc
Transmission model SyncReverser
Transmission type Partially synchronized with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 29.7 kmh (18.5 mph) Reverse: 10.2 (6.3 mph)
Transmission oil capacity 32.2 L (8.5 US. gal, 7.1 Imp. gal.)
Tires
Front tires Ag: 7.5-16 (2WD), 9.5-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at 610mm/24 in) 1,360 kg (3,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 32.2 L (8.5 US. gal, 7.1 Imp. gal.)
Pressure 2800 psi (193.1 bar)
Valves 4
Pump flow 10.9 gpm (41.3 lpm)
Total flow 6.5 gpm (24.6 lpm)
