John Deere 5105M

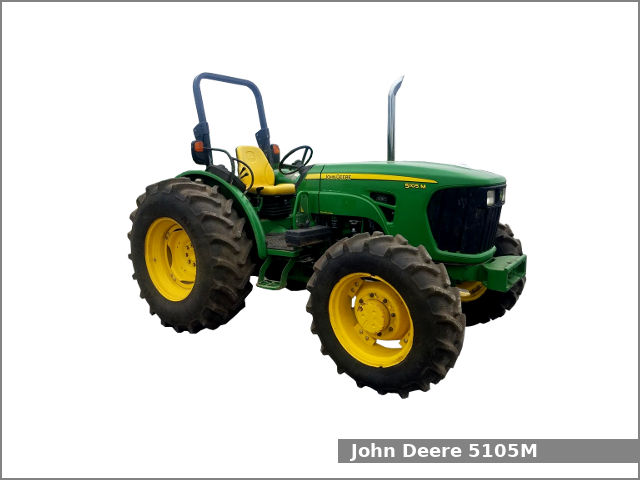

John Deere 5105MThe John Deere 5105M is a 4WD utility tractor from the 5M series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2008 to 2011. The John Deere 5105M is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of four transmission versions.

The JD 5105M utility tractor used the John Deere PowerTech E4045 engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 106.5 PS (78.3 kW; 105.0 HP) at 2,200 rpm of output power and 569.5 N·m (58.1 kg·m, 419.7 ft·lb) at 1,400 rpm of torque.

The John Deere 5105M is equipped with hydrostatic power steering, hydraulic wet disc brakes, foldable ROPS, deluxe ROPS with upgraded seat or cab with heat and air conditioning.

Following attachments are available for the JD 5105M utility tractor:

  • John Deere 553 loader
  • John Deere 563 loader

John Deere 5105M Specifications

General Specifications
Model John Deere 5105M
Length
Width
Height
Wheel base 2,170 mm (85.4 in)
Ground clearance 2WD: 450 mm (17.7 in)
4WD: 470 mm (18.5 in)
Weight ROPS: 3,310 kg (7,297 lbs)
Cab: 3,810 kg (8,400 lbs)
Fuel tank capacity 114.7 liters (30.3 US gal.; 25.2 Imp. gal)
154.0 liters (40.7 US gal.; 33.9 Imp. gal)
Battery 12V, CCA 925A, Group 31
Cabin type Foldable ROPS, deluxe ROPS with upgraded seat or cab with heat and air conditioning.
Engine
Engine model John Deere PowerTech E4045
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 106.5 PS (78.3 kW; 105.0 HP) at 2,200 rpm
Torque 569.5 N·m (58.1 kg·m, 419.7 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 8.3 L (8.8 US. qt, 7.3 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Shift-on-the-move electro-hydraulic rear differential lock
Transmission model SyncReverser
Transmission type Partially synchronized
Gears 16 forward and 16 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 35.0 (21.8 mph)
Transmission model SyncShuttle Plus
Transmission type Partially synchronized
Gears 12 forward and 4 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 19.3 (12 mph)
Transmission model PowrReverser
Transmission type Partially synchronized with power shuttle
Gears 16 forward and 16 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 35.0 (21.8 mph)
Transmission model PowrReverser Plus
Transmission type Partially synchronized with power shuttle
Gears 32 forward and 16 reverse
Tires
Front tires Ag: 12.4R24, 9.5-24, 11.2-24
Lawn/turf: 12LL-16, 44×18-20
Rear tires Ag: 480/80R30, 14.9-28, 16.9-28, 16.9-30
Lawn/turf: 22.5LL-16, 23.1-26
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/24 in) 2,040 kg (4,498 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent electrohydraulic
Rear PTO speed 540/540E or 540/540E/1000 (optional)
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 45.0 L (11.9 US. gal, 9.9 Imp. gal.)
Valves 0 to 3
Pump flow 18.4 gpm (69.7 lpm)
Steering flow 6.3 gpm (23.8 lpm)
Total flow 24.7 gpm (93.5 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
