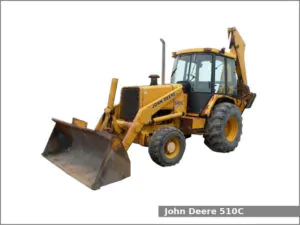

John Deere 510C

John Deere 510CThe John Deere 510C is a 2WD or 4WD backhoe loader tractor manufactured by John Deere in from 1986 to 1991. The John Deere 510C is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and a transmission with 4 forward and reverse gears.

The JD 510C backhoe loader tractor used the John Deere 4045T engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 91.3 PS (67.1 kW; 90.0 HP) at 2,200 rpm of output power and 363.4 N·m (37.1 kg·m, 267.8 ft·lb) at 1,300 rpm of torque.

The John Deere 510C is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, four-post ROPS or cab, and 143.8 liters (38 US gal.; 31.6 Imp. gal) fuel tank.

John Deere 510C Specifications

General Specifications
ModelJohn Deere 510C
Length7,110 mm (279.9 in)
Width2,330 mm (91.7 in)
Wheel base
Ground clearance330 mm (13 in)
Weight (operating) 2WD ROPS: 6,985 kg (15,399 lbs)
4WD Cab: 7,075 kg (15,598 lbs)
Fuel tank capacity143.8 liters (38 US gal.; 31.6 Imp. gal)
Cabin typeFour-post ROPS or Cab
Engine modelJohn Deere 4045T
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower91.3 PS (67.1 kW; 90.0 HP) at 2,200 rpm
Torque363.4 N·m (37.1 kg·m, 267.8 ft·lb) at 1,300 rpm
Oil capacity:8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity:16.1 L (17 US. qt, 14.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Transmission model
Transmission type
Gears4 forward and reverse
Speed Forward: 34.4 kmh (21.4 mph) Reverse: 35.6 (22.1 mph)
Front tires Industrial: 11L-16 (2WD), 12.00-16.5 (4WD)
Rear tires Industrial: 19.5L-24 (2WD), 21L-24 (4WD)
Hydraulic system
Hydraulic typeClosed center
Hydraulic capacity79.5 L (21 US. gal, 17.5 Imp. gal.)
Pressure2755 psi (189.9 bar)
Total flow35.0 gpm (132.5 lpm)
